NSN 3930-00-455-4125
Part Details | POWERED PALLET TRUCK
3930-00-455-4125 A self-propelled, wheeled vehicle having a mechanical or hydraulic operated lifting mechanism (a framework consisting of two forks, each fork having mounted wheel(s) for support of the outer fork ends) primarily designed for horizontal handling of pallets and not intended for high elevating. The lift mechanism raises enough to lift the pallet above the floor only for transporting purposes. May be designed for riding and/or "walking along hand guiding."
Alternate Parts: WL4F9003, 3930-00-455-4125, 00-455-4125, 3930004554125, 004554125
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | APR 25, 1969 | 00-455-4125 | 21921 ( TRUCK, PALLET, POWERED ) |

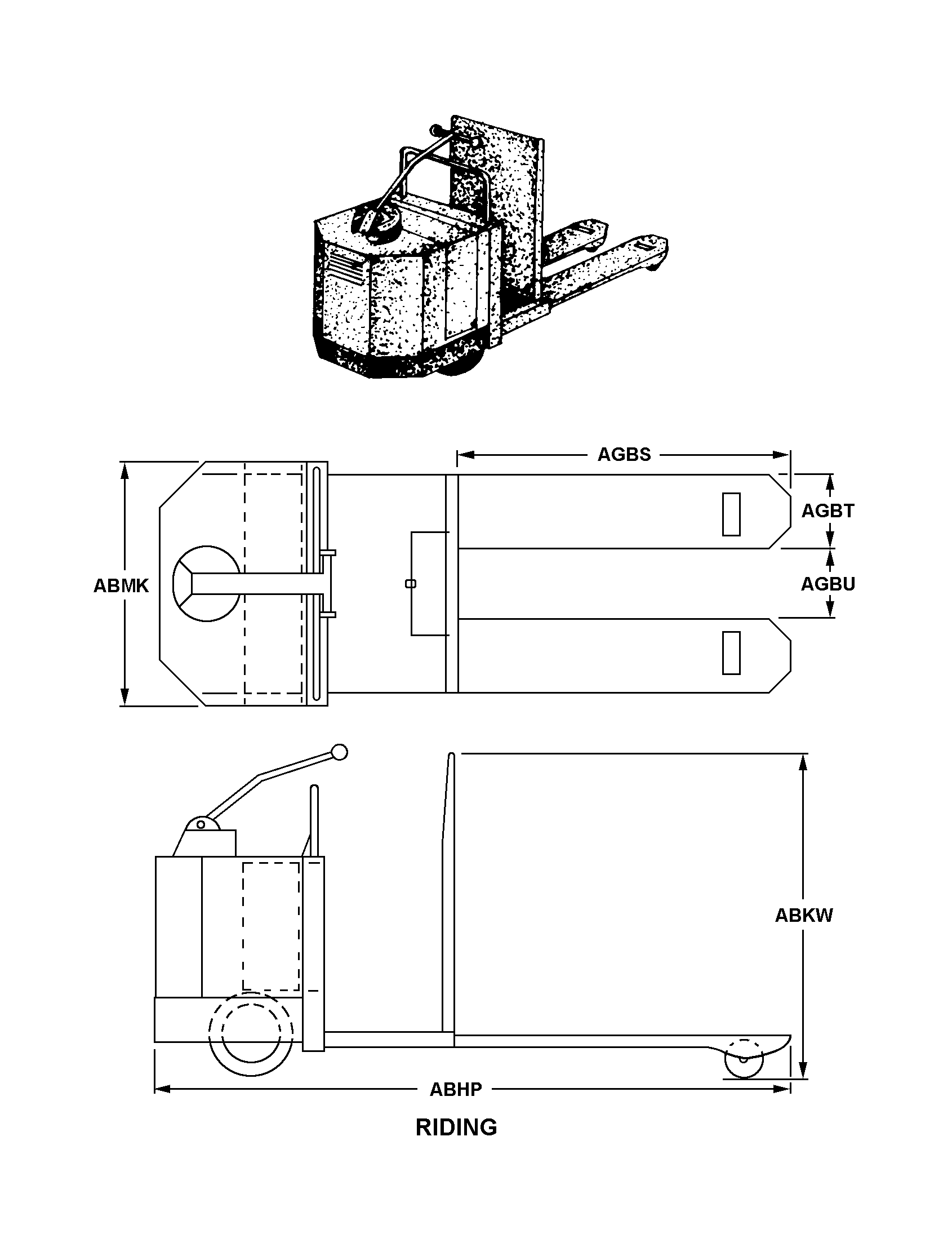

REFERENCE DRAWINGS & PICTURES
RIDING
Cross Reference | NSN 3930-00-455-4125
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WL4F9003 | 90031 | RAYMOND CORPORATION, THE |
Technical Data | NSN 3930-00-455-4125
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RIDING |
| FORK LENGTH | 60.000 INCHES NOMINAL |
| FORK WIDTH | 9.000 INCHES NOMINAL |
| DISTANCE BETWEEN STATIONARY FORKS | 8.250 INCHES MINIMUM AND 9.250 INCHES MAXIMUM |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| VEHICULAR TURN RADIUS | 80.000 INCHES MAXIMUM |
| MAXIMUM LOAD RATING | 4000.000 POUNDS |
| LIFT MECHANISM TYPE | HYDRAULIC |
| LIFT ACTUATION METHOD | POWERED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | U.L. TYPE E |
