NSN 3920-00-062-5516
Part Details | HAND LIFT TRUCK
3920-00-062-5516 A hand-propelled, wheeled vehicle having a mechanical or hydraulic operated lifting mechanism. It is used for lifting and transporting materials. For self-propelled (powered) pallet-type trucks, see TRUCK, PALLET, POWERED; and for self-propelled (powered) skid type (lift platform) trucks, see TRUCK, LIFT, PLATFORM.
Alternate Parts: 25274331, 25-27433-1, 252743310, 25-27433-10, 25274331, 25-27433-1, 252743310, 25-27433-10, 3920-00-062-5516, 00-062-5516, 3920000625516, 000625516
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | JAN 01, 1963 | 00-062-5516 | 33461 ( TRUCK, LIFT, HAND ) |

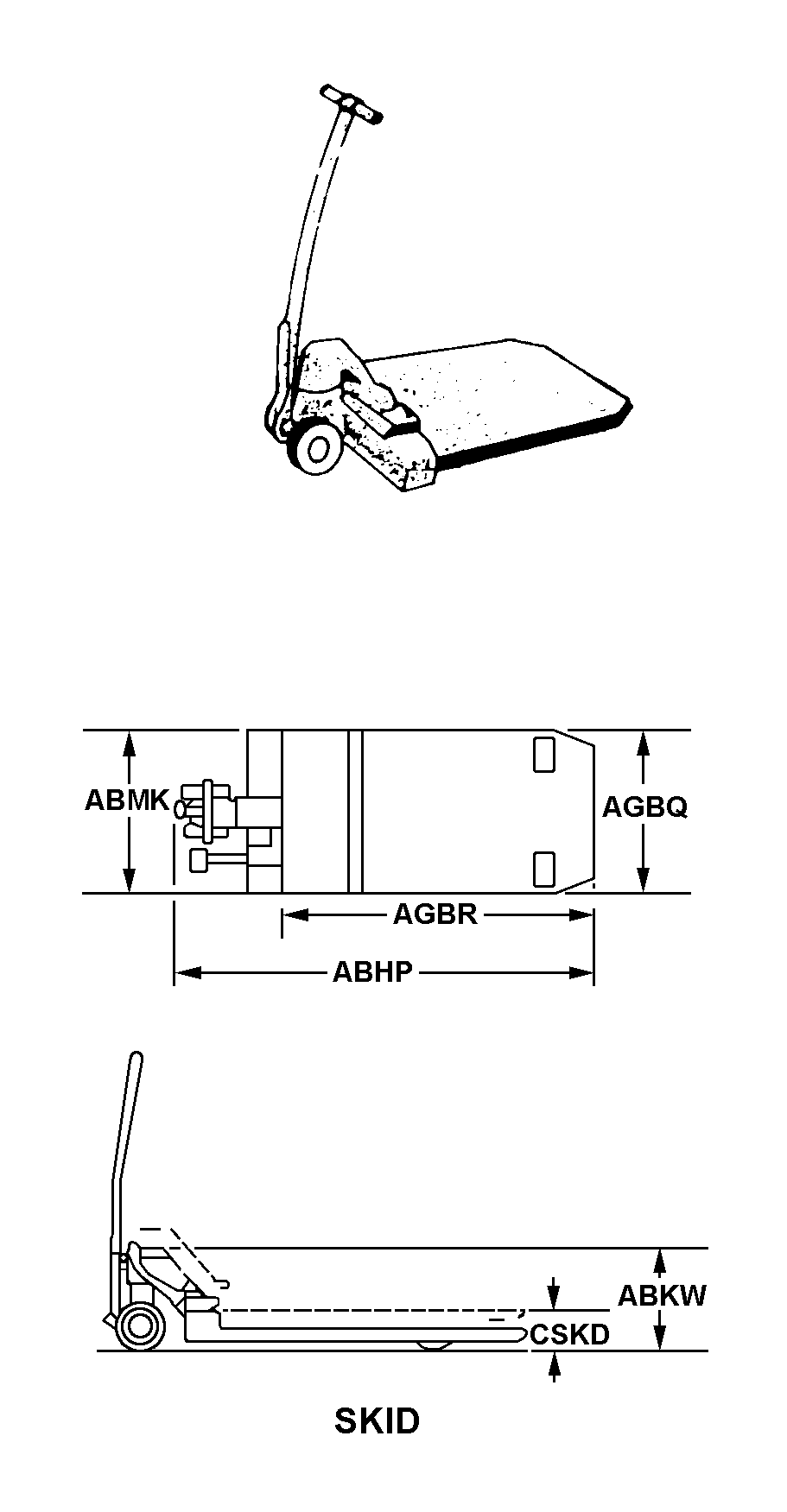

REFERENCE DRAWINGS & PICTURES
SKID
Cross Reference | NSN 3920-00-062-5516
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25-27433-1 | 08903 | BOEING COMPANY, THEDBA BOEING |
| 25-27433-10 | 08903 | BOEING COMPANY, THEDBA BOEING |
| 25-27433-1 | 81205 | THE BOEING COMPANYDBA BOEING |
| 25-27433-10 | 81205 | THE BOEING COMPANYDBA BOEING |
Technical Data | NSN 3920-00-062-5516
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SKID |
| OVERALL LENGTH | 38.000 INCHES NOMINAL |
| OVERALL HEIGHT | 52.200 INCHES NOMINAL |
| OVERALL WIDTH | 23.600 INCHES NOMINAL |
| LOAD PLATFORM WIDTH | 23.600 INCHES NOMINAL |
| LOAD PLATFORM LENGTH | 22.500 INCHES NOMINAL |
| MAXIMUM LOAD RATING | 1000.000 POUNDS |
| LIFT MECHANISM TYPE | MECHANICAL |
| MINIMUM LOAD CARRYING SURFACE HEIGHT | 4.500 INCHES |
