NSN 3820-01-620-7460
Part Details | ROCK DRILL ROD SHANK
3820-01-620-7460 A straight metal rod with a shank at one end to fit the drilling machine chuck, and the opposite end externally threaded or tapered for attachment by a coupling to a threaded drill rod section. The shank has a passageway throughout its entire length for conducting air or water to clear the hole being drilled, and a packing seal in the upper end of the shank, Overall length must be less than 15 inches (381 mm).
Alternate Parts: 4400307, 44-00307, 4400307, 44-00307, 4400307, 44-00307, 3820-01-620-7460, 01-620-7460, 3820016207460, 016207460
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | AUG 08, 2013 | 01-620-7460 | 24414 ( SHANK, ROD, ROCK DRILL ) |
REFERENCE DRAWINGS & PICTURES

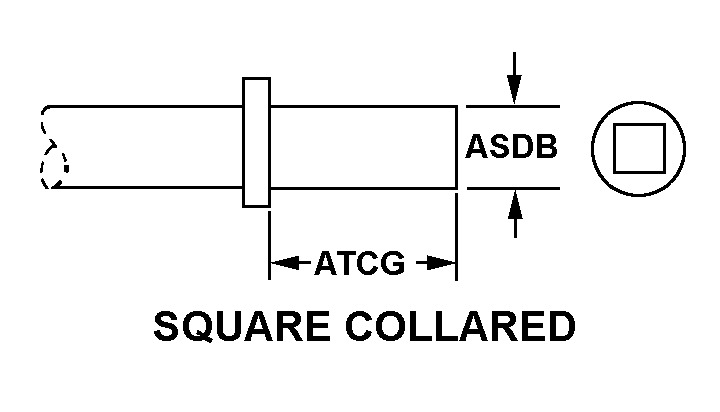

SQUARE COLLARED
Cross Reference | NSN 3820-01-620-7460
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 44-00307 | 0K2R3 | INDUSTRIAL EQUIPMENT CORP. |
| 44-00307 | 0ZBL9 | TAMACCIO, LAURENCE G.DBA TAMCO COMPANY |
| 44-00307 | 20609 | TAMCO INC |
Technical Data | NSN 3820-01-620-7460
| Characteristic | Specifications |
|---|---|
| SHANK STYLE | SQUARE COLLARED |
| ATTACHMENT METHOD | TAPERED SOCKET DRIVE |
| SPECIAL FEATURES | ITEM WEIGHS 3.75 POUNDS |
| END ITEM IDENTIFICATION | 3820-01-542-7652 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SMALL TAPER SHANK 9" UNDER COLLAR |
