NSN 3820-01-254-9846
Part Details | PAVING BREAKER CHISEL
3820-01-254-9846 A straight, solid metal tool with a shank at one end to fit the chuck of a paving breaker, the opposite end processed into a straight, flat blade, with a straight cutting edge. Used for cutting or shaping materials such as asphalt, stone, and other rock-like materials.
Alternate Parts: 270, 4074018, 4074-018, 4074018, 4074-018, 3820-01-254-9846, 01-254-9846, 3820012549846, 012549846
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | MAY 14, 1987 | 01-254-9846 | 16799 ( CHISEL, PAVING BREAKER ) |
REFERENCE DRAWINGS & PICTURES
COLLARED HEXAGON

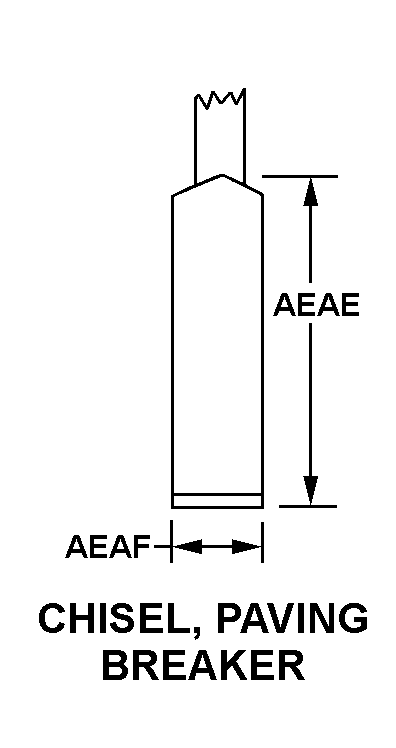

CHISEL, PAVING BREAKER
Cross Reference | NSN 3820-01-254-9846
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 270 | 85416 | BICKNELL MFG CO |
| 4074-018 | 0ZBL9 | TAMACCIO, LAURENCE G.DBA TAMCO COMPANY |
| 4074-018 | 20609 | TAMCO INC |
Technical Data | NSN 3820-01-254-9846
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SHANK STYLE | COLLARED HEXAGON |
| WIDTH ACROSS FLATS | 1.250 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 6.000 INCHES NOMINAL |
| BLADE STYLE | CHISEL, PAVING BREAKER |
| BLADE LENGTH | 12.000 INCHES NOMINAL |
| BLADE WIDTH | 3.000 INCHES NOMINAL |
| OVERALL LENGTH | 22.500 INCHES NOMINAL |
