NSN 3820-01-238-0726
Part Details | PAVING BREAKER CHISEL
3820-01-238-0726 A straight, solid metal tool with a shank at one end to fit the chuck of a paving breaker, the opposite end processed into a straight, flat blade, with a straight cutting edge. Used for cutting or shaping materials such as asphalt, stone, and other rock-like materials.
Alternate Parts: 3615A12, 3820-01-238-0726, 01-238-0726, 3820012380726, 012380726
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | AUG 09, 1986 | 01-238-0726 | 16799 ( CHISEL, PAVING BREAKER ) |
REFERENCE DRAWINGS & PICTURES
COLLARED HEXAGON

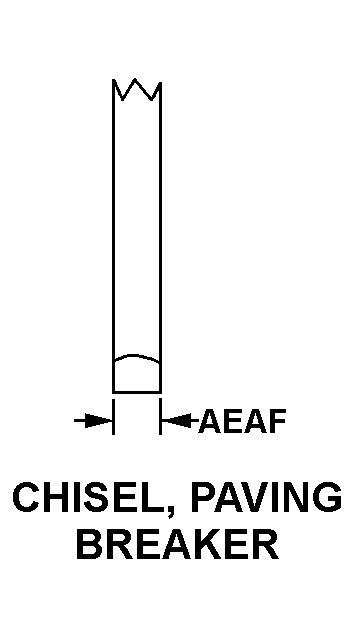

CHISEL, PAVING BREAKER
Cross Reference | NSN 3820-01-238-0726
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3615A12 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Technical Data | NSN 3820-01-238-0726
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE |
| SHANK STYLE | COLLARED HEXAGON |
| WIDTH ACROSS FLATS | 1.250 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 6.000 INCHES NOMINAL |
| BLADE STYLE | CHISEL, PAVING BREAKER |
| BLADE WIDTH | 1.250 INCHES NOMINAL |
| OVERALL LENGTH | 14.000 INCHES NOMINAL |
