NSN 3820-00-641-7763
Part Details | PAVING BREAKER METAL DRUM RIPPING TOOL
3820-00-641-7763 A solid metal tool with a shank at one end to fit the chuck of a paving breaker, the opposite end processed into a blade designed for ripping metal. Used for cutting out metal drum heads or splitting drums lengthwise.
Alternate Parts: MILR423, 3820-00-641-7763, 00-641-7763, 3820006417763, 006417763
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | JAN 01, 1963 | 00-641-7763 | 18795 ( RIPPING TOOL, METAL DRUM, PAVING BREAKER ) |
REFERENCE DRAWINGS & PICTURES
COLLARED HEXAGON

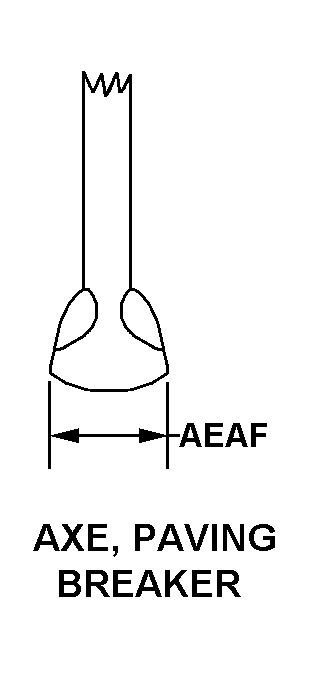

AXE, PAVING BREAKER
Cross Reference | NSN 3820-00-641-7763
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILR423 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 3820-00-641-7763
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SHANK STYLE | COLLARED HEXAGON |
| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
| SHANK OVERALL LENGTH | 2.750 INCHES NOMINAL |
| BLADE STYLE | 0 AXE, PAVING BREAKER |
| BLADE LENGTH | 6.750 INCHES NOMINAL |
| OVERALL LENGTH | 13.125 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
