NSN 3810-00-620-5242
Part Details | TRUCK MOUNTED CRANE-SHOVEL
3810-00-620-5242 A crane-shovel complete with a crane boom and/or shovel attachments mounted on a truck chassis. Excludes CRANE-SHOVEL, WHEEL MOUNTED.
Alternate Parts: MILC10466TYPEACLASS1SIZE12 12T, MILC10466TYPEACLASS1SIZE12 1-2T, MILSTD179, 3810-00-620-5242, 00-620-5242, 3810006205242, 006205242
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 38 | JAN 01, 1963 | 00-620-5242 | 16500 ( CRANE-SHOVEL, TRUCK MOUNTED ) |
REFERENCE DRAWINGS & PICTURES

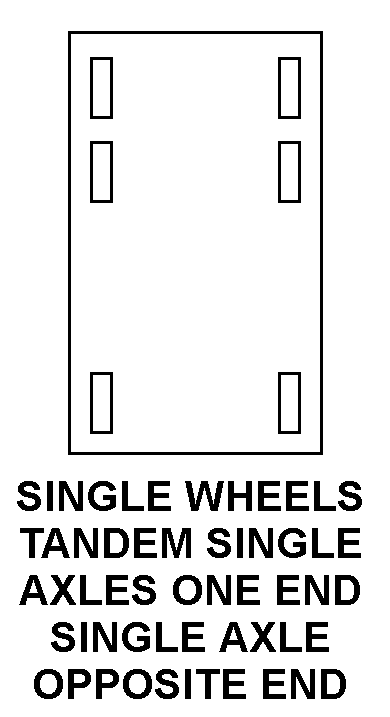

SINGLE WHEELS, TANDEM SINGLE AXLES ONE E ND, SINGLE AXLE OPPOSITE END
Cross Reference | NSN 3810-00-620-5242
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILC10466TYPEACLASS1SIZE12 1-2T | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MILSTD179 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 3810-00-620-5242
| Characteristic | Specifications |
|---|---|
| MAXIMUM LIFTING CAPACITY | 12.500 TONS |
| OUTRIGGER POSITION AT WHICH LIFTING CAPACITY IS RATED | SET |
| BACKHOE MAXIMUM CAPACITY | 0.500 CUBIC YARDS |
| SHOVEL MAXIMUM CAPACITY | 0.500 CUBIC YARDS |
| OPERATING POWER TYPE | MECHANICAL |
| CRANE ENGINE TYPE | GASOLINE |
| QUANTITY | 1 |
| MANUFACTURER NAME | ANY ACCEPTABLE |
| MANUFACTURER IDENTIFYING NUMBER | ANY ACCEPTABLE |
| PRIME MOVER TYPE | E ANY ACCEPTABLE |
| ENGINE QUANTITY | 1 |
| ENGINE MANUFACTURER NAME | ANY ACCEPTABLE |
| ENGINE MANUFACTURER IDENTIFYING NUMBER | ANY ACCEPTABLE |
| BOOM OVERALL LENGTH | 30.000 FEET NOMINAL |
| BOOM DESIGN | NONTELESCOPING |
| BOOM CONTINUOUS ROTATION FEATURE | INCLUDED |
| BOOM EXTENSION TYPE | STRAIGHT JIB |
| WHEEL ARRANGEMENT STYLE | SINGLE WHEELS, TANDEM SINGLE AXLES ONE E ND, SINGLE AXLE OPPOSITE END |
| REAR DRIVE WHEEL QUANTITY | 4 |
| FRONT DRIVE WHEEL QUANTITY | 2 |
| STEERABLE WHEEL QUANTITY | 2 |
| SHOVEL ATTACHMENT | INCLUDED |
| CROWD CONTROL METHOD | CHAIN AND WIRE ROPE |
| BACKHOE | INCLUDED |
| OUTRIGGERS | INCLUDED |
| OPERATION METHOD | MANUAL |
| PILE DRIVER | INCLUDED |
| BOOM LENGTH | 30.000 FEET NOMINAL |
| CRANE OPERATOR CAB | INCLUDED |
| FURNISHED ITEMS AND QUANTITY | HOOK PINTLE 1 |
| NONDEFINITIVE SPEC/STD DATA | A TYPE AND 12 1 TO 2 T SIZE |
| DEPARTURE FROM CITED DESIGNATOR | CGTX |
