NSN 3439-01-322-3221
Part Details | SOLDERING AID HEAT SINK
3439-01-322-3221 An item for dissipating heat during soldering operations which incorporates either a liquid absorbent in the form of foam or gel, or a metallic absorbent. The metallic absorbent is designed for attachment to heat sensitive components, such as diodes or transistors, to prevent thermal changes. Excludes HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENTS.
Alternate Parts: 514T04701, 514T047-01, 3439-01-322-3221, 01-322-3221, 3439013223221, 013223221
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | JUL 03, 1990 | 01-322-3221 | 61653 ( HEAT SINK, SOLDERING AID ) |
REFERENCE DRAWINGS & PICTURES

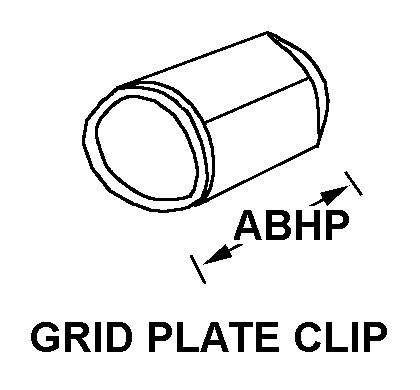

GRID PLATE CLIP
Cross Reference | NSN 3439-01-322-3221
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 514T047-01 | 65065 | WOODWARD FST INC. |
Technical Data | NSN 3439-01-322-3221
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GRID PLATE CLIP |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| SPECIAL FEATURES | RQRD TO ABSORB HEAT DURING WELDING PROCESS DURING INSTALLATION OF INLET FITTING;C/O TURNED BAR STOCK W/THREADED ID AND GAS PURGE CROSS-HOLE;0.8 IN. DIA BY 1.0 IN. LG |
