NSN 3439-00-703-0724
Part Details | ELECTRIC SOLDERING IRON TIP
3439-00-703-0724 A metallic item designed to be attached to the end of an electric soldering iron or an electric soldering iron handle for the purpose of transmitting heat to the item being soldered. Tt may include an integral electrical heating element and may be designed to accommodate a tiplet.
Alternate Parts: CE94382, 3439-00-703-0724, 00-703-0724, 3439007030724, 007030724
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | JAN 01, 1963 | 00-703-0724 | 11205 ( TIP, ELECTRIC SOLDERING IRON ) |
REFERENCE DRAWINGS & PICTURES

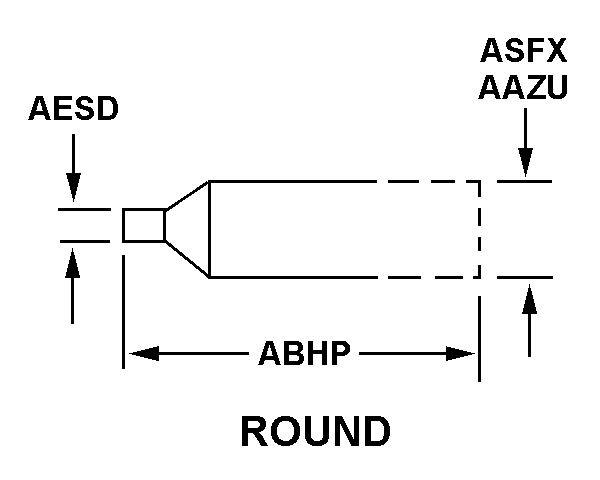

ROUND
PYRAMID
Cross Reference | NSN 3439-00-703-0724
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CE94382 | 98230 | NATIONAL SECURITY AGENCY |
Technical Data | NSN 3439-00-703-0724
| Characteristic | Specifications |
|---|---|
| TIP TYPE | BC ANY ACCEPTABLE |
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | TIN |
| BODY STYLE | ROUND |
| TIP DIAMETER | 0.420 INCHES NOMINAL |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| MOUNTING END DIAMETER | 0.620 INCHES NOMINAL |
| TIPLET ACCOMMODATION | NOT INCLUDED |
| TIP END STYLE | 5 PYRAMID |
| INTEGRAL HEATING ELEMENT | NOT INCLUDED |
| SPECIAL FEATURES | 0.036 IN. LG OF SQ TIP END |
