NSN 3439-00-499-5528
Part Details | ELECTRIC SOLDERING IRON TIP
3439-00-499-5528 A metallic item designed to be attached to the end of an electric soldering iron or an electric soldering iron handle for the purpose of transmitting heat to the item being soldered. Tt may include an integral electrical heating element and may be designed to accommodate a tiplet.
Alternate Parts: TT2, TT2, 3439-00-499-5528, 00-499-5528, 3439004995528, 004995528
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | JUL 06, 1974 | 00-499-5528 | 11205 ( TIP, ELECTRIC SOLDERING IRON ) |
REFERENCE DRAWINGS & PICTURES

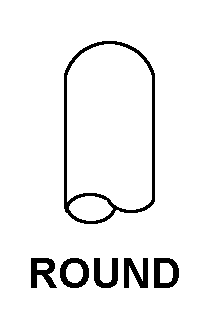

ROUND
ROUND
Cross Reference | NSN 3439-00-499-5528
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TT2 | 07015 | CONTACT INC |
| TT2 | 91920 | MARSHALL INDUSTRIESCLAUDE MICHAEL GROUP |
Technical Data | NSN 3439-00-499-5528
| Characteristic | Specifications |
|---|---|
| TIP TYPE | BC ANY ACCEPTABLE |
| MATERIAL | TUNGSTEN ALLOY |
| BODY STYLE | ROUND |
| TIP DIAMETER | 0.040 INCHES NOMINAL |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| MOUNTING END DIAMETER | 0.125 INCHES NOMINAL |
| TIPLET ACCOMMODATION | NOT INCLUDED |
| TIP END STYLE | ROUND |
| INTEGRAL HEATING ELEMENT | NOT INCLUDED |
| MOUNTING METHOD | U ANY ACCEPTABLE |
