NSN 3439-00-355-6187
Part Details | NONELECTRIC SOLDERING IRON TIP
3439-00-355-6187 A metallic item designed to be attached to the end of a nonelectric soldering iron for the purpose of transmitting heat to the item being soldered.
Alternate Parts: 23S20, 23S20, 3439-00-355-6187, 00-355-6187, 3439003556187, 003556187
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | JAN 24, 1981 | 00-355-6187 | 28145 ( TIP, NONELECTRIC SOLDERING IRON ) |
REFERENCE DRAWINGS & PICTURES

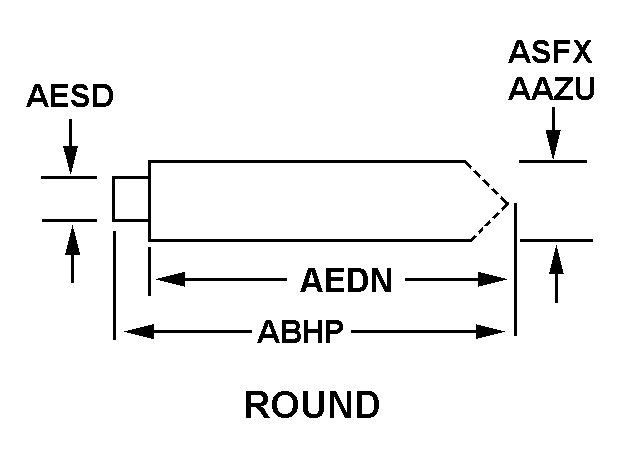

ROUND
CHISEL
Cross Reference | NSN 3439-00-355-6187
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23S20 | 96073 | ESAB GROUP, INC., THEDBA ESAB WELDING AND CUTTING |
| 23S20 | 30367 | L-TEC WELDING AND CUTTING SYSTEMS |
Technical Data | NSN 3439-00-355-6187
| Characteristic | Specifications |
|---|---|
| TIP TYPE | BC ANY ACCEPTABLE |
| MATERIAL | COPPER |
| BODY STYLE | ROUND |
| TIPLET ACCOMMODATION | NOT INCLUDED |
| TIP END STYLE | CHISEL |
| INTEGRAL HEATING ELEMENT | NOT INCLUDED |
| MOUNTING METHOD | PLUG W/SETSCREW |
