NSN 3230-00-279-0745
Part Details | WOODCUTTING CIRCULAR SAW BLADE
3230-00-279-0745 A circular steel disk cut to a specific diameter and thickness with a continuous series of milled or ground teeth on the periphery, and an arbor hole of a specific size and shape for mounting on the arbor of a machine. It is used for cross cutting, ripping, mitering, beveling and grooving in wood and plastics.
Alternate Parts: T2002, GGGB440, GGG-B-440, 3230-00-279-0745, 00-279-0745, 3230002790745, 002790745
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 32 | JAN 01, 1963 | 00-279-0745 | 07976 ( BLADE, CIRCULAR SAW, WOODCUTTING ) |
REFERENCE DRAWINGS & PICTURES

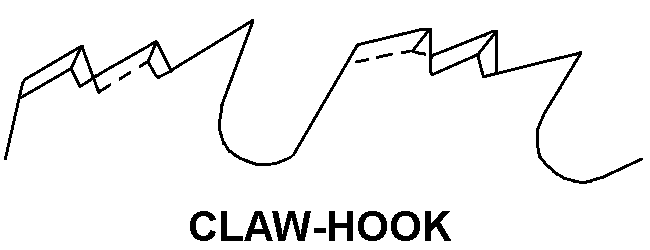

CLAW-HOOK
Cross Reference | NSN 3230-00-279-0745
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T2002 | 07429 | BLACK AND DECKER US INC |
| GGG-B-440 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 3230-00-279-0745
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | COMBINATION |
| TEETH QUANTITY | 44 |
| TOOTH EDGE TYPE | FLAT GROUND |
| DIAMETER | 16.000 INCHES NOMINAL |
| RIM GAGE NUMBER | 13 |
| TOOTH TYPE | SOLID |
| SOLID TOOTH STYLE | CLAW-HOOK |
| ARBOR HOLE DIAMETER | 1.000 INCHES NOMINAL |
| KEYWAY | NOT INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND III TYPE |
