NSN 3220-01-038-2457
Part Details | TRAILER MOUNTED WOODWORKING RADIAL OVERARM SAW
3220-01-038-2457 A mobile unit containing a diesel or gasoline engine powered electric generator and a SAW, RADIAL OVERARM, WOODWORKING with a power feed. It may include various cutters, metal cutting circular saw blade(s), conveyor(s), power driven hand tools, miscellaneous hand tools, and the like.
Alternate Parts: GGGS0058STYLEBSIZE16, GGG-S-0058STYLEBSIZE16, 3220-01-038-2457, 01-038-2457, 3220010382457, 010382457
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 32 | APR 01, 1977 | 01-038-2457 | 20775 ( SAW, RADIAL OVERARM, WOODWORKING, TRAILER MOUNTED ) |
REFERENCE DRAWINGS & PICTURES

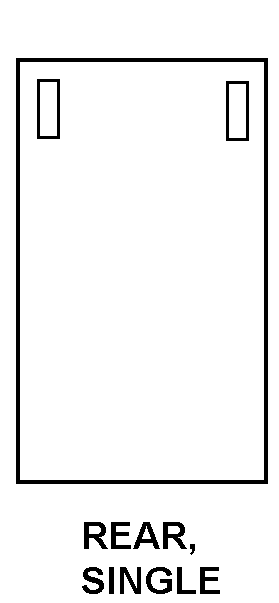

REAR, SINGLE
Cross Reference | NSN 3220-01-038-2457
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-S-0058STYLEBSIZE16 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 3220-01-038-2457
| Characteristic | Specifications |
|---|---|
| BLADE MAXIMUM DIAMETER ACCOMMODATED | 16.000 INCHES |
| BLADE ARBOR DIAMETER ACCOMMODATED | 1.000 INCHES NOMINAL |
| CUTOFF CAPACITY | 1 IN.THK AND 24 IN.W |
| MAXIMUM RIPPING CAPACITY | 36.000 INCHES |
| ELECTRIC GENERATOR POWER METHOD | DIESEL ENGINE |
| WHEEL ARRANGEMENT STYLE | REAR, SINGLE |
| TIRE TYPE | PNEUMATIC |
| SIZE DESIGNATION | 9.00-20 |
| RETRACTABLE TRAILER SUPPORT | NOT PROVIDED |
| SUPPLY ITEMS AND QUANTITIES | 2330-00-728-0262,TRAILER,CARGO,1 |
| DOCUMENT CONTROLLING AGENCY | ARMY |
| DOCUMENT TYPE | MILITARY SPECIFICATION |
| DOCUMENT IDENTIFICATION | MIL-S-17717C |
| COMPONENT DOCUMENT PAGE NUMBER | 6 |
| SPECIAL FEATURES | SAW HAS ROLLERS FOR ROLLING SAW FROM TRAILER ONTO TAILGATE AND BACK WITHOUT BINDING,HOLD-DOWN BRACKETS PREVENT SAW FROM SHIFTING; WITH TWO HANDLES IAW MS35792-1,ARROR IS INTEGRAL PART OF MOTOR SHAFT,MODIFIED FOR TRAILER MOUNTING |
