NSN 3130-00-045-3351
Part Details | BEARING UNIT HOUSING
3130-00-045-3351 A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER.
Alternate Parts: 6777850, 6777850, 340020C1, 6777850, 320113H1, 340020C1, 340020C1, 6777850, 3130-00-045-3351, 00-045-3351, 3130000453351, 000453351
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | NOV 29, 1967 | 00-045-3351 | 30559 ( HOUSING, BEARING UNIT ) |

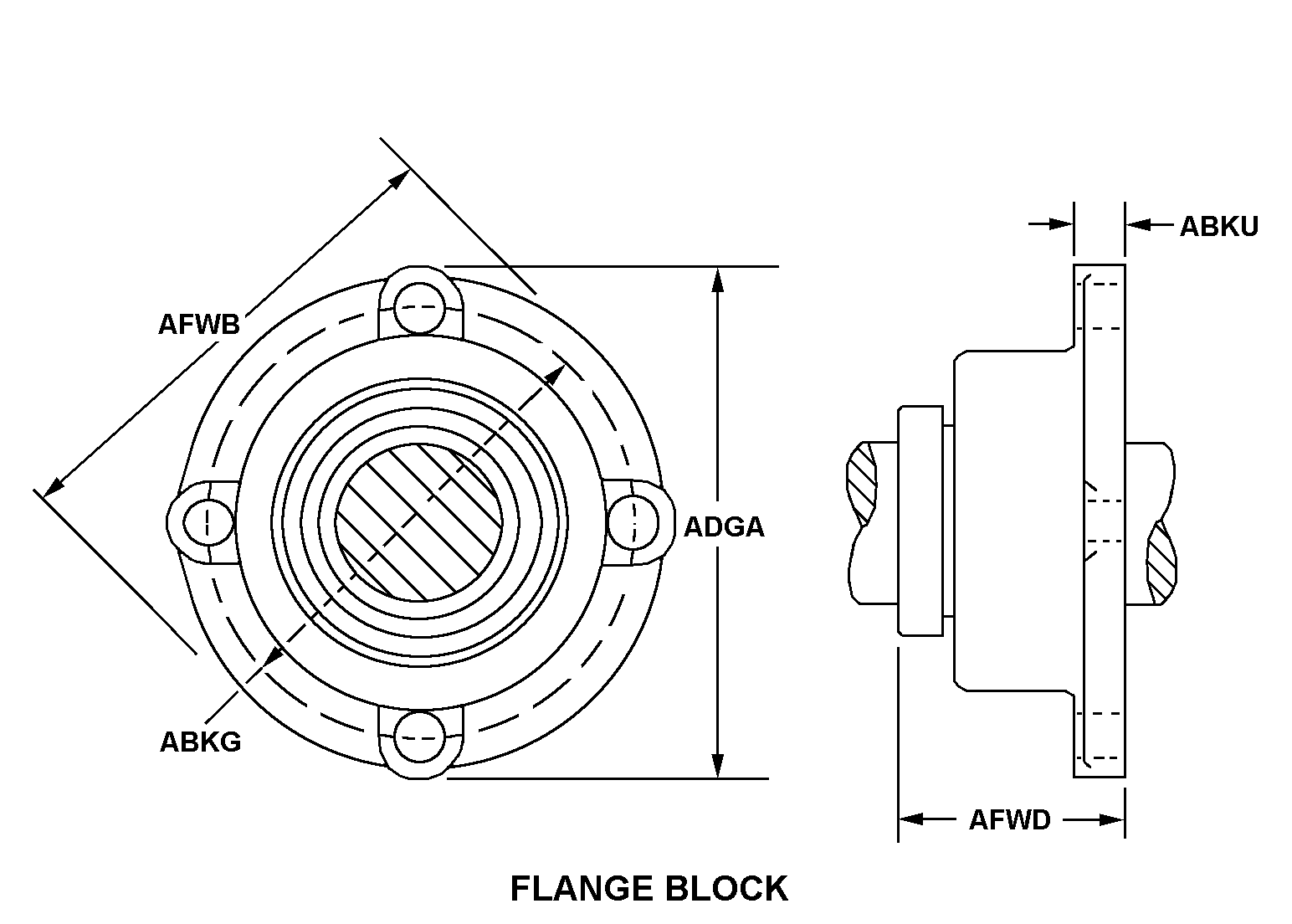

REFERENCE DRAWINGS & PICTURES
FLANGE BLOCK
Cross Reference | NSN 3130-00-045-3351
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6777850 | 73342 | ALLISON TRANSMISSION, INC. |
| 6777850 | 47140 | DEFENSE SYSTEMS INC |
| 340020C1 | 45RP7 | DRESSTA NORTH AMERICA LTD |
| 6777850 | 4V717 | K AND K ENGINEERED PRODUCTS INC |
| 320113H1 | 29510 | KOMATSU AMERICAN INTL CO |
| 340020C1 | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| 340020C1 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
| 6777850 | 6H244 | W. W. WILLIAMS MIDWEST, INC.DBA WILLIAMS DISTRIBUTION |
Technical Data | NSN 3130-00-045-3351
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.8950 INCHES NOMINAL |
| STYLE DESIGNATOR | FLANGE BLOCK |
| BOLT CIRCLE DIAMETER | 4.860 INCHES NOMINAL |
| FLANGE THICKNESS | 0.108 INCHES NOMINAL |
| HOUSING DIAMETER | 5.430 INCHES NOMINAL |
| HOUSING LENGTH | 2.273 INCHES NOMINAL |
