NSN 3040-00-040-2858
Part Details | PAWL
3040-00-040-2858 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).
Alternate Parts: J3282, 8376605, 3040-00-040-2858, 00-040-2858, 3040000402858, 000402858
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-040-2858 | 22101 ( PAWL ) |
REFERENCE DRAWINGS & PICTURES

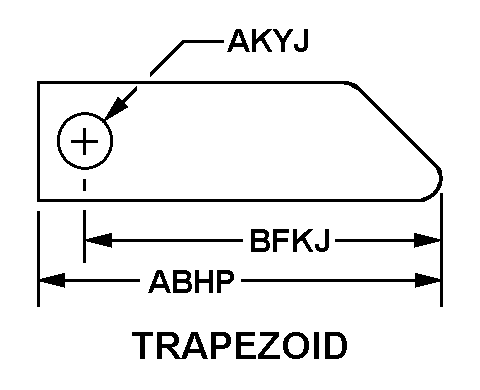

TRAPEZOID
Cross Reference | NSN 3040-00-040-2858
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J3282 | 80837 | KYSOR/WESTRAN CORPAUSTIN TRAILER DIV |
| 8376605 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3040-00-040-2858
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 6 TRAPEZOID |
| OVERALL LENGTH | 1.718 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 0.375 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.688 INCHES NOMINAL |
| SPECIAL FEATURES | DEPTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:0.438 IN.NOM;LENGTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:1.062 IN.NOM;FSC APPLICATION DATA:SUPPORTS,RETRACTABLE,SEMITRAILER |
