NSN 3040-00-035-8117
Part Details | SHOULDERED SHAFT
3040-00-035-8117 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Alternate Parts: 1032, 1032, 3040-00-035-8117, 00-035-8117, 3040000358117, 000358117
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-035-8117 | 22914 ( SHAFT, SHOULDERED ) |
REFERENCE DRAWINGS & PICTURES
PLAIN

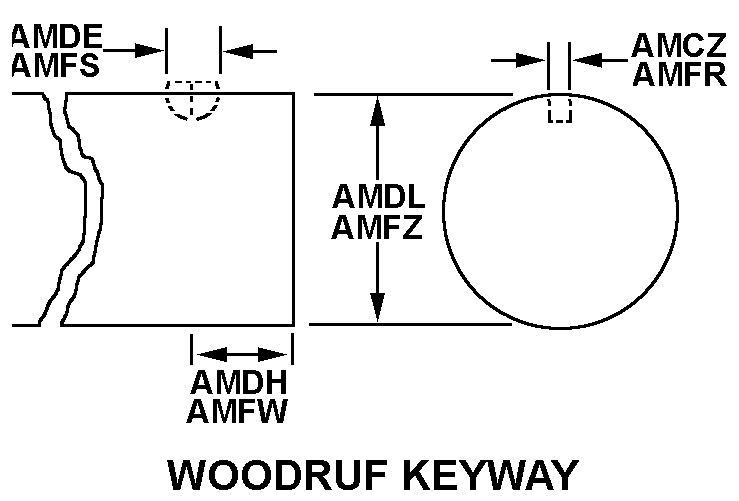

WOODRUFF KEYWAY
PLAIN
WOODRUFF KEYWAY
Cross Reference | NSN 3040-00-035-8117
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1032 | 12763 | DYNALEC CORPORATION |
| 1032 | 20049 | THE ELECTRIC TACHOMETER CORP. |
Technical Data | NSN 3040-00-035-8117
| Characteristic | Specifications |
|---|---|
| FIRST END STYLE | WOODRUFF KEYWAY |
| FIRST END KEYWAY WIDTH | 0.0940 INCHES NOMINAL |
| FIRST END DISTANCE FROM KEYWAY CENTER TO END | 0.828 INCHES NOMINAL |
| FIRST END DIAMETER | 0.2480 INCHES MINIMUM AND 0.2490 INCHES MAXIMUM |
| END SIMILARITY | NOT IDENTICAL |
| SECOND END STYLE | 2 PLAIN |
| SECOND END DIAMETER | 0.4990 INCHES MINIMUM AND 0.5010 INCHES MAXIMUM |
| SECOND END EXTERNAL THREAD LENGTH | 0.625 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 0.499 INCHES MINIMUM AND 0.501 INCHES MAXIMUM |
| OVERALL LENGTH | 6.609 INCHES NOMINAL |
| STEP QUANTITY | 1 |
