NSN 3040-00-026-0222
Part Details | PAWL
3040-00-026-0222 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).
Alternate Parts: 324888, 622892, 605025, 8384050, PX1972, 3040-00-026-0222, 00-026-0222, 3040000260222, 000260222
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-026-0222 | 22101 ( PAWL ) |

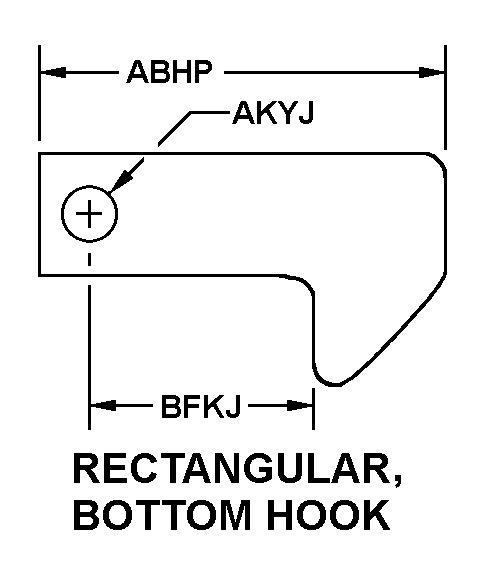

REFERENCE DRAWINGS & PICTURES
RECTANGULAR, BOTTOM HOOK
Cross Reference | NSN 3040-00-026-0222
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 324888 | 23705 | FRUEHAUF CORP |
| 622892 | 29500 | HOUDAILLE INDUSTRIES INC |
| 605025 | 29500 | HOUDAILLE INDUSTRIES INC |
| 8384050 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| PX1972 | 89564 | VULCAN-HART CORP |
Technical Data | NSN 3040-00-026-0222
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECTANGULAR, BOTTOM HOOK |
| OVERALL LENGTH | 2.344 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 0.316 INCHES NOMINAL |
| LENGTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT | 1.093 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.250 INCHES NOMINAL |
| SPECIAL FEATURES | DEPTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:0.632 IN.NOM;LENGTH FROM PIVOT PINHOLE CENTER TO ENGAGEMENT END;1.093 IN.NOM;MATERIAL DOCUMENT CLASSIFICATION:STEEL,QQ-S-630,C1010 TO 1025 |
