NSN 3040-00-020-9504
Part Details | EXTENSION SHAFT
3040-00-020-9504 An item consisting of a length of rigid shafting designed to be coupled to the shaft of items such as variable capacitors, switches, hand cranks and the like. It is specifically designed to increase the length of the original shaft and may also effect a change in the shaft diameter. Includes coupling(s) or has processed end(s) to facilitate the attachment of a coupling device. May have provision for electrically insulating the extension shaft from the other shaft.
Alternate Parts: 5466786002, 546-6786-002, 3040-00-020-9504, 00-020-9504, 3040000209504, 000209504
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-020-9504 | 18437 ( EXTENSION SHAFT ) |

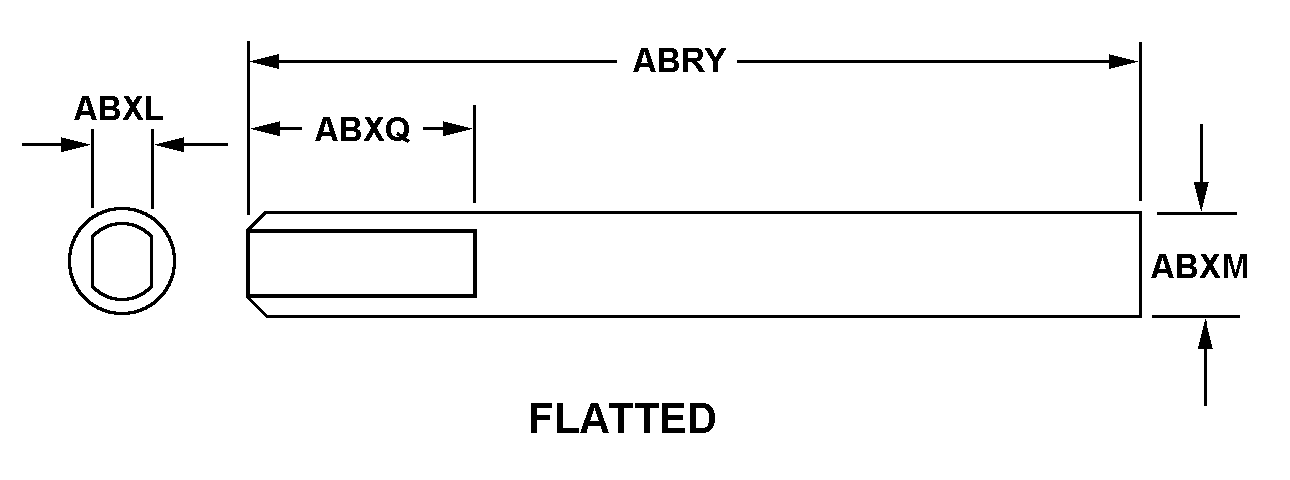

REFERENCE DRAWINGS & PICTURES
FLATTED
Cross Reference | NSN 3040-00-020-9504
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 546-6786-002 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 3040-00-020-9504
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLATTED |
| LENGTH | 0.774 INCHES NOMINAL |
| DISTANCE FROM FLAT TO FLAT | 0.125 INCHES NOMINAL |
| SHAFT END DIAMETER | 0.247 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| FLATTED PORTION LENGTH | 0.774 INCHES NOMINAL |
| MATERIAL | IRON |
| END TYPE | PROCESSED END |
| SHAFT END DESIGN | FEMALE |
| SHAFT END CONFIGURATION | FLATTED ROUND |
