NSN 3040-00-012-5568
Part Details | SHAFT COLLAR
3040-00-012-5568 An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID.
Alternate Parts: 5479695002, 547-9695-002, 3040-00-012-5568, 00-012-5568, 3040000125568, 000125568
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1961 | 00-012-5568 | 13743 ( COLLAR, SHAFT ) |
REFERENCE DRAWINGS & PICTURES

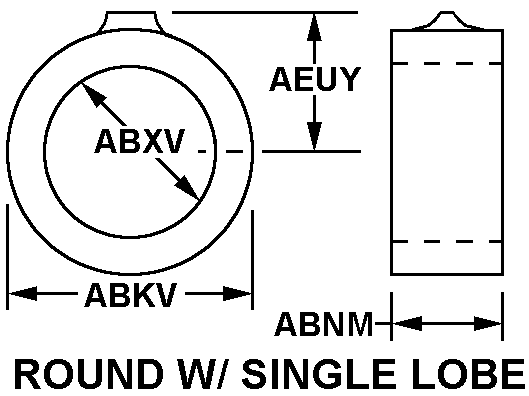

ROUND W/SINGLE LOBE
Cross Reference | NSN 3040-00-012-5568
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 547-9695-002 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 3040-00-012-5568
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CHROMATE |
| STYLE DESIGNATOR | ROUND W/SINGLE LOBE |
| OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| THICKNESS | 0.187 INCHES NOMINAL |
| BORE DIAMETER | 0.2510 INCHES NOMINAL |
| DISTANCE FROM BORE CENTERLINE TO END | 0.422 INCHES NOMINAL |
| SECURING HOLE QUANTITY | 2 |
| ANGLE BETWEEN CENTERLINES OF SECURING HOLES IN DEG | 90.0 |
| SECURING HOLE TYPE AND LOCATION | THREADED ALL HOLES |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | ALL HOLES UNF |
| NOMINAL THREAD SIZE AND LOCATION | 0.112 INCHES ALL HOLES |
