NSN 3040-00-011-5293
Part Details | SHAFT COLLAR
3040-00-011-5293 An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID.
Alternate Parts: 646310, 646310, 3040-00-011-5293, 00-011-5293, 3040000115293, 000115293
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | MAY 01, 1968 | 00-011-5293 | 13743 ( COLLAR, SHAFT ) |
REFERENCE DRAWINGS & PICTURES

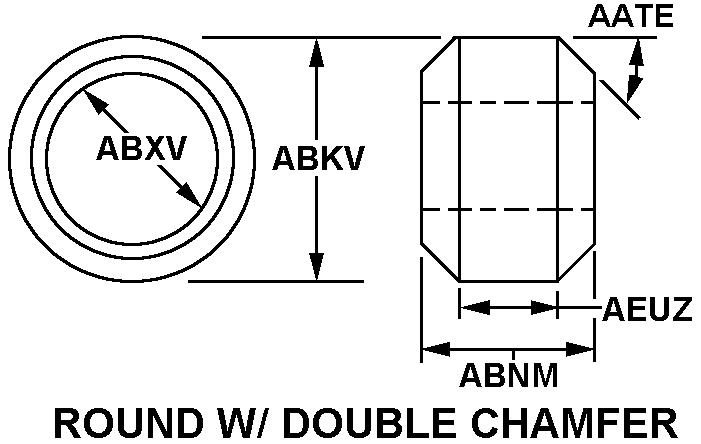

ROUND W/DOUBLE CHAMFER
Cross Reference | NSN 3040-00-011-5293
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 646310 | 11449 | TURBO POWER & MARINE SYSTEM INCSUB OF UNITED TECHNOLOGIES CORP |
| 646310 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 3040-00-011-5293
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND W/DOUBLE CHAMFER |
| CHAMFER ANGLE IN DEG | 45.0 |
| OUTSIDE DIAMETER | 0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| THICKNESS | 0.295 INCHES MINIMUM AND 0.305 INCHES MAXIMUM |
| BORE DIAMETER | 0.3200 INCHES MINIMUM AND 0.3240 INCHES MAXIMUM |
| LARGEST DIAMETER LENGTH | 0.220 INCHES NOMINAL |
| SPECIAL FEATURES | NICKEL ALLOY AMS5754 |
| END ITEM IDENTIFICATION | TF30 AIRCRAFT ENGINE |
