NSN 3030-00-126-2336
Part Details | FLAT BELT
3030-00-126-2336
Alternate Parts: 852694, 3030-00-126-2336, 00-126-2336, 3030001262336, 001262336
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | NOV 18, 1968 | 00-126-2336 | 06440 ( BELT, FLAT ) |
REFERENCE DRAWINGS & PICTURES

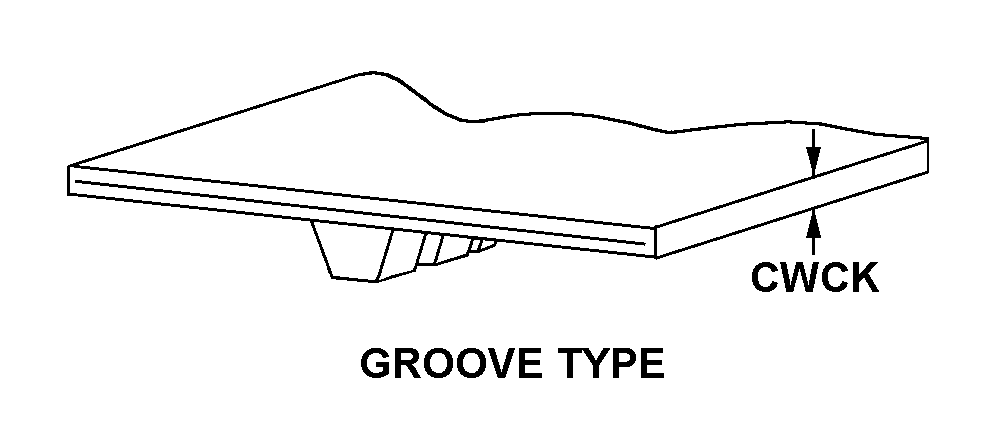

GROOVE TYPE
Cross Reference | NSN 3030-00-126-2336
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 852694 | 61465 | GARWOOD/FELLER INCGARWOOD WINCH DIV |
Technical Data | NSN 3030-00-126-2336
| Characteristic | Specifications |
|---|---|
| STRENGTHENING FEATURE | FIBER CORD |
| STYLE DESIGNATOR | GROOVE TYPE |
| NOMINAL THICKNESS | 0.406 INCHES |
| NOMINAL WIDTH | 24.000 INCHES |
| NOMINAL INSIDE CIRCUMFERENCE | 250.000 INCHES |
| BELT COUPLING TYPE | HINGE |
| USAGE DESIGN | CONVEYING MATERIALS |
