NSN 3020-00-032-2896
Part Details | SILENT CHAIN
3020-00-032-2896 A flexible mechanical device consisting of inverted tooth links, with or without guide links, and used for power transmission. The links are joined by pins and mate with the sprocket teeth with a sliding action. Excludes flexible mechanical devices specifically designed for use with COUPLING, SHAFT, FLEXIBLE.
Alternate Parts: SC610X71, DSG610X71, 8329792, 3020-00-032-2896, 00-032-2896, 3020000322896, 000322896
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-032-2896 | 04449 ( CHAIN, SILENT ) |
REFERENCE DRAWINGS & PICTURES

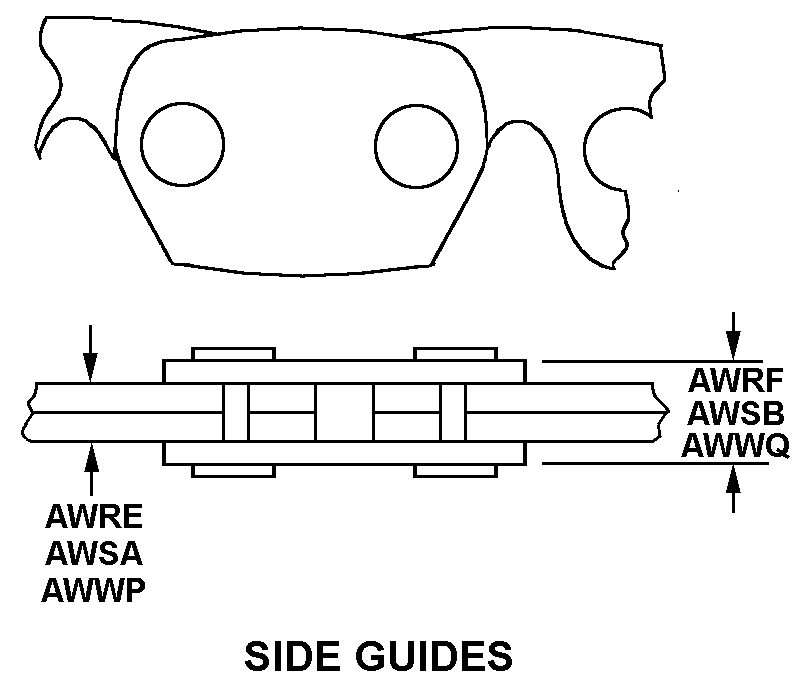

SIDE GUIDES
SIDE GUIDES
SIDE GUIDES
Cross Reference | NSN 3020-00-032-2896
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SC610X71 | 77667 | RAMSEY PRODUCTS CORP |
| DSG610X71 | 77667 | RAMSEY PRODUCTS CORP |
| 8329792 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 3020-00-032-2896
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FIRST CHAIN LINK NOMINAL WIDTH | 2.0000 INCHES |
| LINK STYLE | SIDE GUIDES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 2.0000 INCHES |
| LINK NOMINAL WIDTH | 2.0000 INCHES |
| LINK ROW QUANTITY | 25 |
| EFFECTIVE LENGTH | 4.4375 FEET NOMINAL |
