NSN 3020-00-018-2462
Part Details | ROLLER CHAIN
3020-00-018-2462 A flexible mechanical device consisting of one or more rows of links used for conveying or power transmission. The link side plates are flat or offset and are spaced apart by rollers, bushings and/or pins. The chain mates with a sprocket with an articulating action. The non-rotating bushing type chain is limited to that designated by the American National Standards Institute as "roller chain". Excludes CHAIN, BLOCK.
Alternate Parts: 906765, 906765, 906765, 008326, D4018CHN, D40-18CHN, 3020-00-018-2462, 00-018-2462, 3020000182462, 000182462
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | MAY 10, 1968 | 00-018-2462 | 04457 ( CHAIN, ROLLER ) |
REFERENCE DRAWINGS & PICTURES

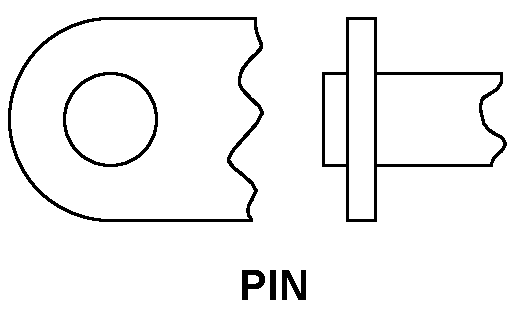

PIN
ROLLER
ROLLER
ROLLER
Cross Reference | NSN 3020-00-018-2462
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 906765 | 07524 | DOVER ENERGY, INC.DBA BLACKMER PUMP |
| 906765 | Z1286 | EBSRAY PUMPS PTY LTD |
| 906765 | 0MHC4 | NAVPAR, INC |
| 008326 | 11406 | REXNORD HOLDINGS INC |
| D40-18CHN | 11406 | REXNORD HOLDINGS INC |
Technical Data | NSN 3020-00-018-2462
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| LINK STYLE | ROLLER |
| LINK PLATE NOMINAL THICKNESS | 0.0600 INCHES |
| LINK ROLLER NOMINAL DIAMETER | 0.4000 INCHES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 0.3125 INCHES |
| LINK PLATE WIDTH | 0.452 INCHES NOMINAL |
| LINK ROW QUANTITY | 2 |
| END CONNECTION STYLE | PIN |
| PIN FASTENING METHOD | ANY ACCEPTABLE |
| PIN OVERALL LENGTH | 1.2740 INCHES NOMINAL |
