NSN 3010-00-864-6886
Part Details | SHAFT COUPLING HALF
3010-00-864-6886 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Alternate Parts: B3325, 1021B174, 3010-00-864-6886, 00-864-6886, 3010008646886, 008646886
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1962 | 00-864-6886 | 08009 ( COUPLING HALF, SHAFT ) |

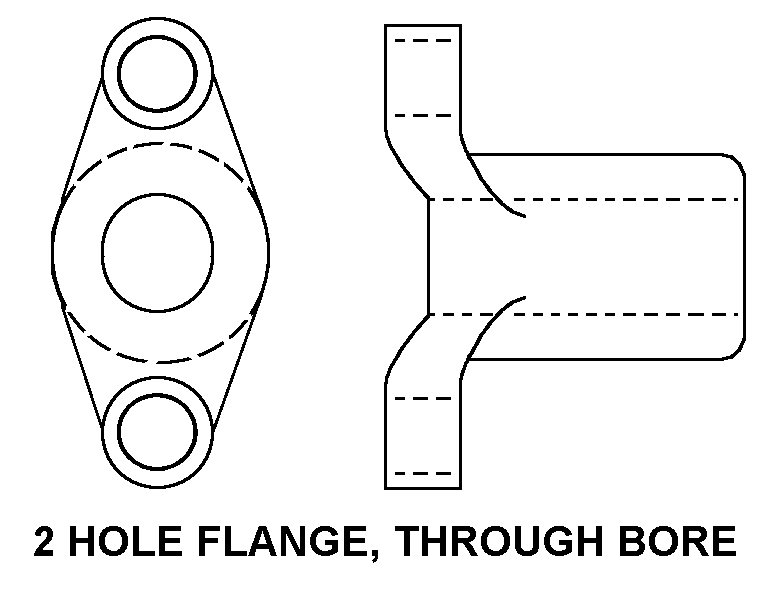

REFERENCE DRAWINGS & PICTURES
2 HOLE FLANGE, THROUGH BORE
Cross Reference | NSN 3010-00-864-6886
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B3325 | 32770 | KATO ENGINEERING INC. |
| 1021B174 | 10137 | SZEMCO INC |
Technical Data | NSN 3010-00-864-6886
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON MALLEABLE |
| BODY STYLE | 2 HOLE FLANGE, THROUGH BORE |
| OVERALL LENGTH | 1.902 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 0.9970 INCHES NOMINAL |
| BORE LENGTH | 1.3120 INCHES NOMINAL |
| FEATURES PROVIDED | KEYWAY |
| SPECIAL FEATURES | FSC APPLICATION DATA:GENERATOR DRIVE GROUP, GENERATOR SET; BORE THREAD SIZE DESIGNATOR:3/8-16 UNC; POSITIONING FACILITY BOLT CIRCLE DIA.:4.250" NOM.; POSITIONING FACILITY QTY:2; POSITIONING HOLE STYLE:TAPPED; BORE COUNTER FEATURE:INCLUDED; KEYING FACILITY QTY:1; KEYING FACILITY:INCLUDED; COUNTERBORE LOCATION:COUPLING END; O/A OUTSIDE DIMENSION:5.250"; HUB OD:1.750" NOM.; THREAD PROVISION:UNTHREADED; DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY:0.576" NOM.; KEYWAY WD:0.156" NOM.; FLANGE THICKNESS:0.375" NOM.; COUNTERBORE DIA.:1.406" NOM.; COUNTERBORE DEPTH:0.187" NOM. |
