NSN 3010-00-779-6321

Part Details | RIGID SHAFT COUPLING

3010-00-779-6321 A device for connecting the ends of two shafts to produce in effect, one piece of rigid shafting so that the rotary motion of one shaft is transmitted to the other shaft. Couplings of the sleeve type must have an over-all length exceeding the outside diameter, or must have an internal spline.

Alternate Parts: W212C185X1, W212C185X7, W212C185X1, CS30100003, CS3010-0003, W246249, 3010-00-779-6321, 00-779-6321, 3010007796321, 007796321

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
30JAN 01, 196200-779-632113742 ( COUPLING, SHAFT, RIGID )
REFERENCE DRAWINGS & PICTURES

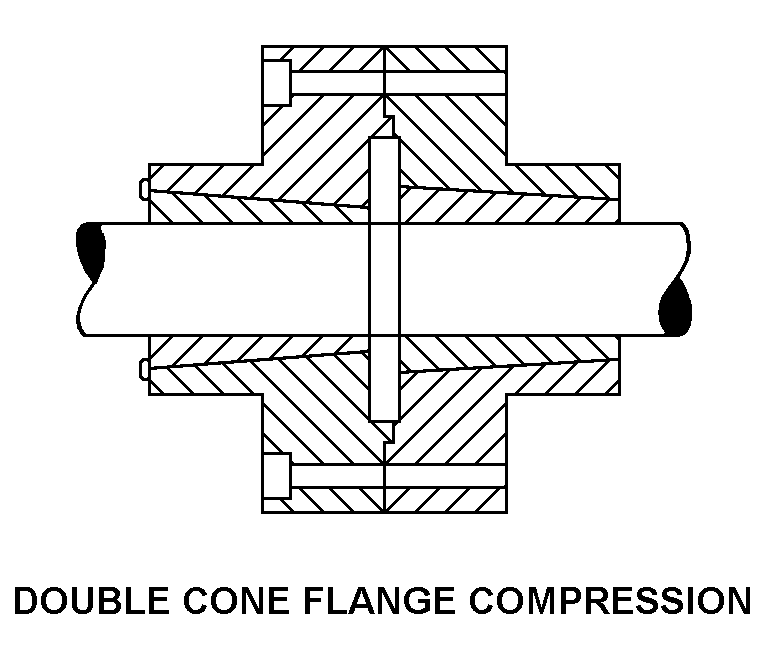

DOUBLE CONE FLANGE COMPRESSION

COUPLING,SHAFT,RIGI | 3010-00-779-6321, 007796321
Cross Reference | NSN 3010-00-779-6321
Part Number Cage Code Manufacturer
W212C185X10UBG9CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION
W212C185X788032CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION
W212C185X188032CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION
CS3010-000316236DLA LAND AND MARITIMEDBA ENGINEERING AND TECHNICAL
W24624930760INGERSOLL RAND CO
Technical Data | NSN 3010-00-779-6321
Characteristic Specifications
BODY MATERIAL STEEL COMP 1042
MATERIAL DOCUMENT AND CLASSIFICATIONAISI 1042 ASSN STD SINGLE MATERIAL RESPONSE
STYLE DESIGNATOR DOUBLE CONE FLANGE COMPRESSION
OVERALL DIAMETER6.249 INCHES MINIMUM AND 6.250 INCHES MAXIMUM
OVERALL LENGTH7.930 INCHES NOMINAL
FEATURES PROVIDED KEYWAY AND BORE COUNTERBORE
SPECIAL FEATURESCOUNTERBORE DIAMETER: BOTH ENDS, 2.560 IN. NOMINAL; COUNTERBORE DEPTH: FIRST END, 1.406 MINIMUM AND 1.408 IN. MAXIMUM; SECOND END, 0.938 IN. MINIMUM AND 0.940 IN. MAXIMUM; DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY: FIRST END, 0.908 IN. MINIMUM AND 0.914 IN. MAXIMUM; SECOND END, 1.064 IN. MINIMUM AND 1.069 IN. MAXIMUM; FLANGE WIDTH: 1.860 IN. NOMINAL; HUB DIAMETER: 3.250 IN. NOMINAL; 1 KEYING FACILITY PROVIDED BOTH ENDS; KEYING FACILITY WIDTH: FIRST END, 0.375 IN. MINIMUM AND 0.380 IN. MAXIMUM; SECOND END, 0.500 IN. MINIMUM AND 0.510 IN. MAXIMUM
