NSN 3010-00-118-5250
Part Details | SHAFT COUPLING HALF
3010-00-118-5250 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Alternate Parts: SA14537, AS14537, 14537, 2810L20051, 2810L20-051, 14537, 3010-00-118-5250, 00-118-5250, 3010001185250, 001185250
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-118-5250 | 08009 ( COUPLING HALF, SHAFT ) |

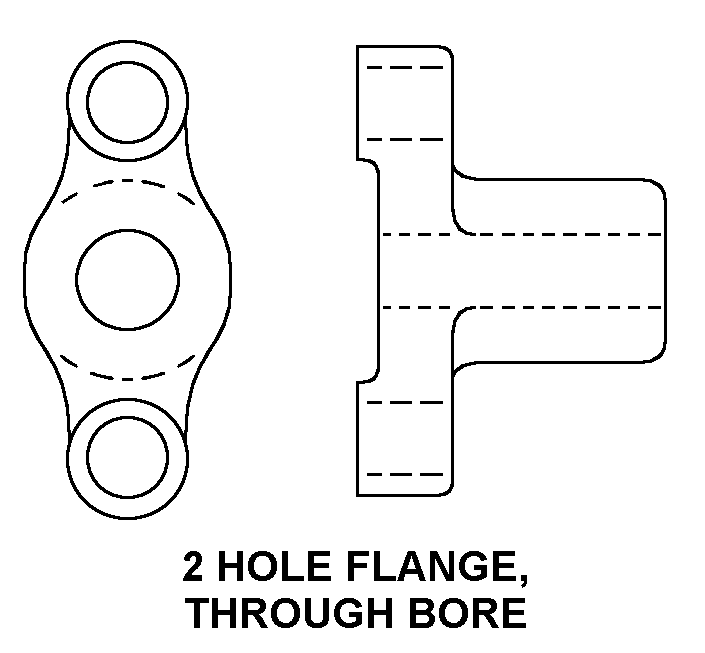

REFERENCE DRAWINGS & PICTURES
2 HOLE FLANGE, THROUGH BORE
Cross Reference | NSN 3010-00-118-5250
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SA14537 | 12776 | AIRCRAFT SUPPLIES |
| AS14537 | 12776 | AIRCRAFT SUPPLIES |
| 14537 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
| 2810L20-051 | 81996 | U S ARMY AVIATION AND MISSILECOMMAND |
| 14537 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 3010-00-118-5250
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| BODY STYLE | 2 HOLE FLANGE, THROUGH BORE |
| OVERALL LENGTH | 1.310 INCHES MINIMUM AND 1.314 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 0.5050 INCHES MINIMUM AND 0.5250 INCHES MAXIMUM |
| BORE LENGTH | 1.0310 INCHES NOMINAL |
| FEATURES PROVIDED | KEYWAY |
| SPECIAL FEATURES | SURFACE TREATMENT:CADMIUM; POSITIONING FACILITY BOLT CIRCLE DIA.:1.375" NOM.; POSITIONING FACILITY QTY:2; SECURING METHOD:A/A; KEYING FACILITY:NOT INCLUDED; COUNTERBORE LOCATION:COUPLING END; O/A OUTSIDE DIMENSION:1.875"; HUB OD:0.771" MIN., 0.791" MAX.; THREAD PROVISION:UNTHREADED; FLANGE THICKNESS:0.396" MIN., 0.416" MAX.; COUNTERBORE DEPTH:0.271" MIN., 0.291" MAX.; COUNTERBORE DIA.:1.005" MIN., 1.015" MAX. |
