NSN 3010-00-102-0358
Part Details | FLEXIBLE COUPLING INSERT
3010-00-102-0358 An item specifically designed to be inserted between the driving and driven members of a flexible coupling to allow for slight misalignment of the shafts.
Alternate Parts: 600INSR, 670, 670, 3010-00-102-0358, 00-102-0358, 3010001020358, 001020358
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | DEC 13, 1972 | 00-102-0358 | 08010 ( INSERT, FLEXIBLE COUPLING ) |
REFERENCE DRAWINGS & PICTURES

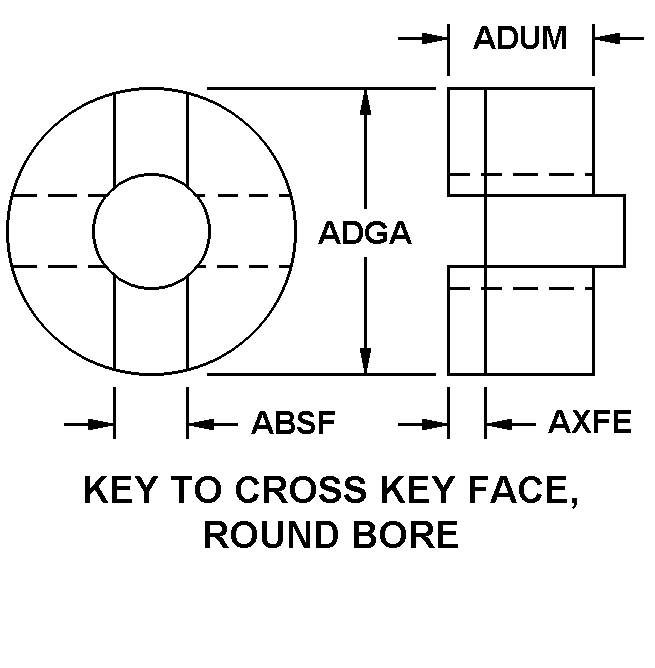

KEY TO CROSS KEY FACE, ROUND BORE
Cross Reference | NSN 3010-00-102-0358
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 600INSR | 14204 | MAGNALOY COUPLING CO DIV OFDOUVILLE-JOHNSTON CORP |
| 670 | 14204 | MAGNALOY COUPLING CO DIV OFDOUVILLE-JOHNSTON CORP |
| 670 | 0LML6 | ROTARYAIRE COMPRESSOR CORP |
Technical Data | NSN 3010-00-102-0358
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER |
| STYLE DESIGNATOR | KEY TO CROSS KEY FACE, ROUND BORE |
| KEY WIDTH | 3.000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 5.980 INCHES NOMINAL |
| OVERALL THICKNESS | 5.975 INCHES NOMINAL |
| KEY HEIGHT | 1.140 INCHES NOMINAL |
| SPECIAL FEATURES | LAMINATED CONSTRUCTION FEATURE-NOT INCL.;BORE DIA 2.625 IN.. |
