NSN 3010-00-090-0036
Part Details | FLEXIBLE COUPLING INSERT
3010-00-090-0036 An item specifically designed to be inserted between the driving and driven members of a flexible coupling to allow for slight misalignment of the shafts.
Alternate Parts: 751124211, 75-112421-1, 239694, A239694, 3010-00-090-0036, 00-090-0036, 3010000900036, 000900036
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-090-0036 | 08010 ( INSERT, FLEXIBLE COUPLING ) |

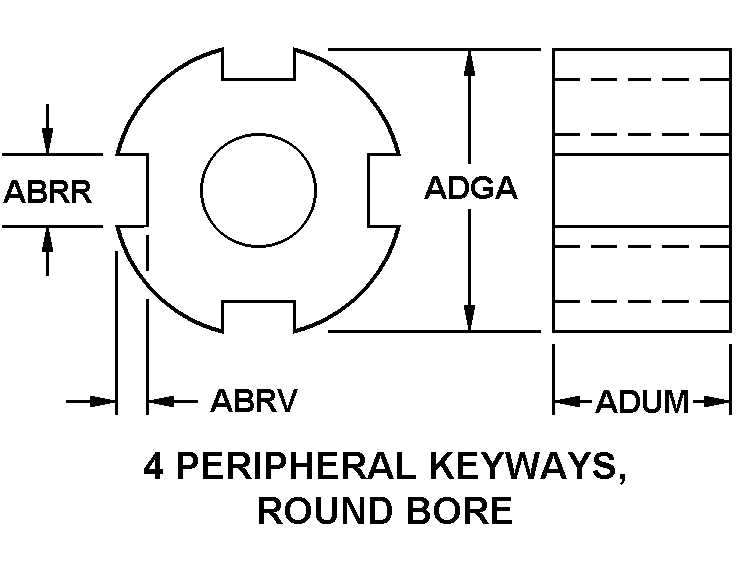

REFERENCE DRAWINGS & PICTURES
4 PERIPHERAL KEYWAYS, ROUND BORE
Cross Reference | NSN 3010-00-090-0036
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 75-112421-1 | 04655 | GENERAL DYNAMICS MISSION SYSTEMS,INC. |
| 239694 | 06845 | RAYTHEON COMPANYDBA RAYTHEON |
| A239694 | 06845 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 3010-00-090-0036
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4 PERIPHERAL KEYWAYS, ROUND BORE |
| KEYWAY WIDTH | 0.213 INCHES MINIMUM AND 0.217 INCHES MAXIMUM |
| KEYWAY DEPTH | 0.150 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.800 INCHES NOMINAL |
| OVERALL THICKNESS | 0.100 INCHES NOMINAL |
| SPECIAL FEATURES | LAMINATED CONSTRUCTION FEATURE-NOT INCL.;BORE DIA 0.256 IN.;DISTANCE FROM BORE CTR LINE TO BOTTOM OF KEYING FACILITY 0.250 IN.;MATL-PLASTIC |
