NSN 3010-00-085-5564
Part Details | NONVEHICULAR SHIFTER FORK
3010-00-085-5564 An item having two or more prongs which may have transverse hole(s), slot(s), dowel pin(s), pad(s), in or on the end of each prong, to provide a means to accomplish the engagement or disengagement of gear(s), shaft(s), clutch, or the like. The opposite end has facilities for a shaft, lever, or the like. This item is designed for use on all applications other than vehicular. Excludes SHIFTER FORK, VEHICULAR.
Alternate Parts: 1664868, 185548R1, 91226, 47572, 3010-00-085-5564, 00-085-5564, 3010000855564, 000855564
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-085-5564 | 52052 ( SHIFTER FORK, NONVEHICULAR ) |

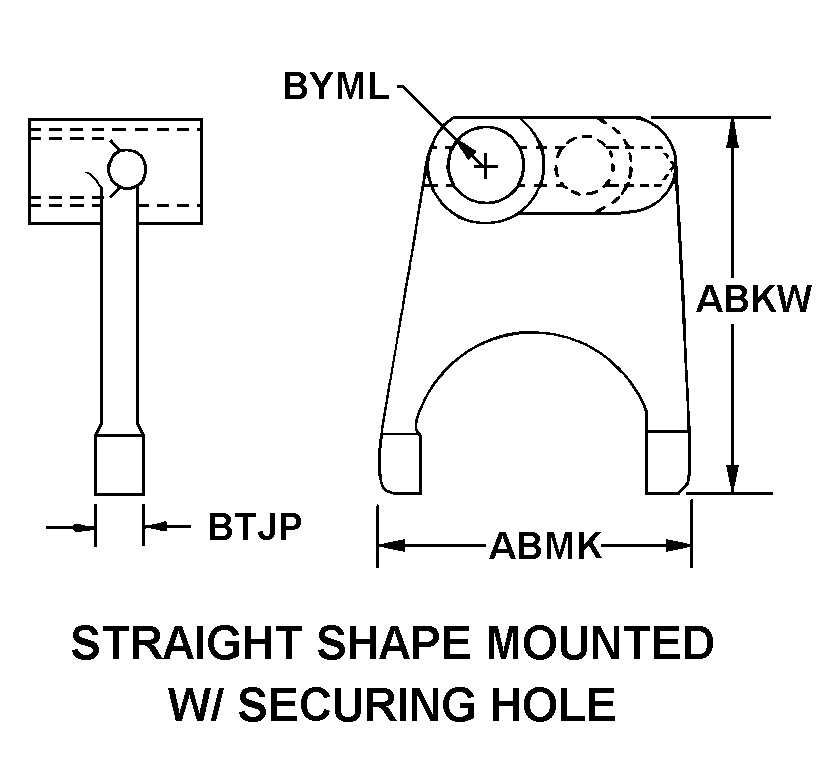

REFERENCE DRAWINGS & PICTURES
STRAIGHT SHAPE MOUNTED W/ SECURING HOLE
Cross Reference | NSN 3010-00-085-5564
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1664868 | 93334 | ATWOOD FENCE COMPANY, INC. |
| 185548R1 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
| 91226 | 76760 | NEW VENTURE GEAR INCNEW PROCESS GEAR DIV |
| 47572 | 13841 | TIFFIN PARTS, L.L.C.DIV SUBSIDIARY OF PETTIBONE CORP. |
Technical Data | NSN 3010-00-085-5564
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | STRAIGHT SHAPE MOUNTED W/ SECURING HOLE |
