NSN 2990-00-112-0433
Part Details | REMOTE CONTROL LEVER
2990-00-112-0433 A rigid item usually in the form of an arm of various shapes and cross sections, containing two or more holes so spaced that one serves as a pivot with or without hubs and must have a definite means for securing to a shaft (such as threaded hole for set-screw, keyway(s), splines, serrations or some clamping device). The other hole(s) connect(s) to CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; or CLEVIS, ROD END; to provide transmission of movement to other parts of the mechanism. See also BELL CRANK. For manually operated items see LEVER, MANUAL CONTROL.
Alternate Parts: 5124615, 5124615, 2990-00-112-0433, 00-112-0433, 2990001120433, 001120433
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | AUG 23, 1968 | 00-112-0433 | 22099 ( LEVER, REMOTE CONTROL ) |
REFERENCE DRAWINGS & PICTURES

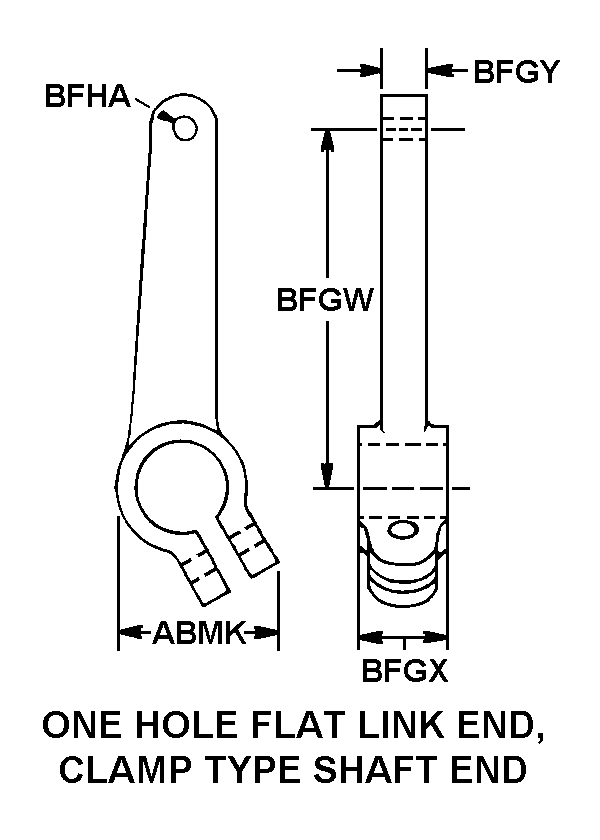

ONE HOLE FLAT LINK END, CLAMP TYPE SHAFT END
Cross Reference | NSN 2990-00-112-0433
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5124615 | 24617 | GENERAL MOTORS CORP |
| 5124615 | 72582 | MTU AMERICA INC. |
Technical Data | NSN 2990-00-112-0433
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON MALLEABLE |
| STYLE DESIGNATOR | ONE HOLE FLAT LINK END, CLAMP TYPE SHAFT END |
| OVERALL WIDTH | 0.860 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LINK AND SHAFT HOLES | 2.260 INCHES NOMINAL |
| SHAFT END THICKNESS | 0.480 INCHES NOMINAL |
| LINK END THICKNESS | 0.240 INCHES NOMINAL |
| LINK END HOLE DIAMETER | 0.328 INCHES NOMINAL |
| BORE TYPE | PLAIN STRAIGHT |
| BORE DIAMETER | 0.549 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| BORE LENGTH | 0.480 INCHES NOMINAL |
| SHAFT SECURING METHOD | KEYWAY |
| FEATURES PROVIDED | KEYWAY AND SPLIT END SCREW CLAMPING FEATURE |
| KEYWAY WIDTH | 0.096 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
| KEYWAY LENGTH | 0.480 INCHES NOMINAL |
| SPECIAL FEATURES | SLOT CAST IN CENTER OF LEVER; OFFSET HEIGHT: 0.120 IN. NOMINAL |
