NSN 2935-01-016-8960
Part Details | FILLER OPENING CAP
2935-01-016-8960 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).
Alternate Parts: F911, F911, 2935-01-016-8960, 01-016-8960, 2935010168960, 010168960
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | FEB 25, 1976 | 01-016-8960 | 30128 ( CAP, FILLER OPENING ) |
REFERENCE DRAWINGS & PICTURES

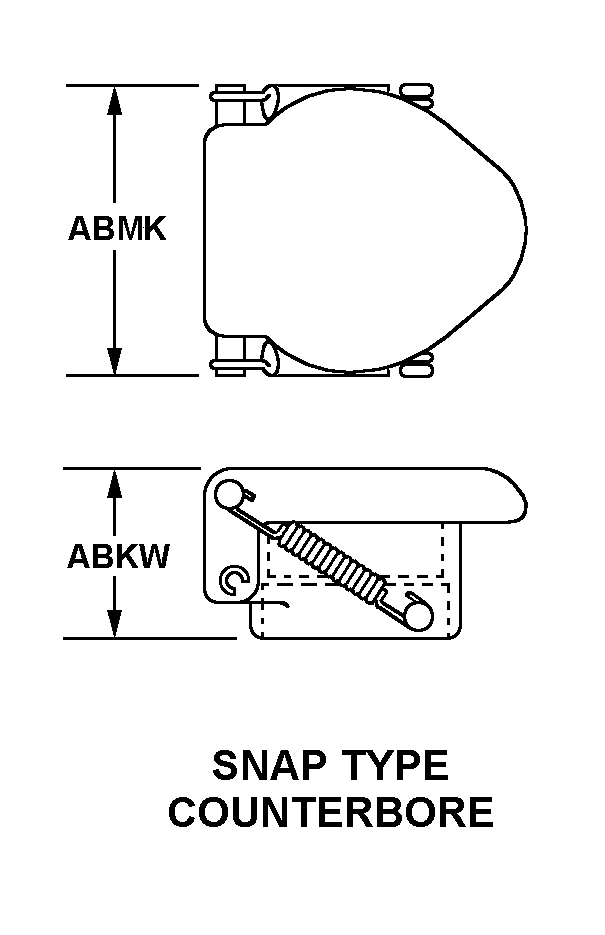

SNAP TYPE COUNTERBORE
Cross Reference | NSN 2935-01-016-8960
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F911 | 97484 | EATON AEROSPACE LLCDIV FLUID AND ELECTRICAL |
| F911 | R1120 | SATAIR A/S |
Technical Data | NSN 2935-01-016-8960
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SNAP TYPE COUNTERBORE |
| OVERALL HEIGHT | 1.560 INCHES NOMINAL |
| OVERALL WIDTH | 2.200 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | NONPRESSURIZED |
