NSN 2930-00-200-8138
Part Details | FILLER OPENING CAP
2930-00-200-8138 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).
Alternate Parts: 33006, C1UZ8100A, C1UU8100A, C1UZ8100A, AX2401, AX-2401, AAX0768, SP21, SP12, SP29, SP-29, 2930-00-200-8138, 00-200-8138, 2930002008138, 002008138
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1961 | 00-200-8138 | 30128 ( CAP, FILLER OPENING ) |
REFERENCE DRAWINGS & PICTURES

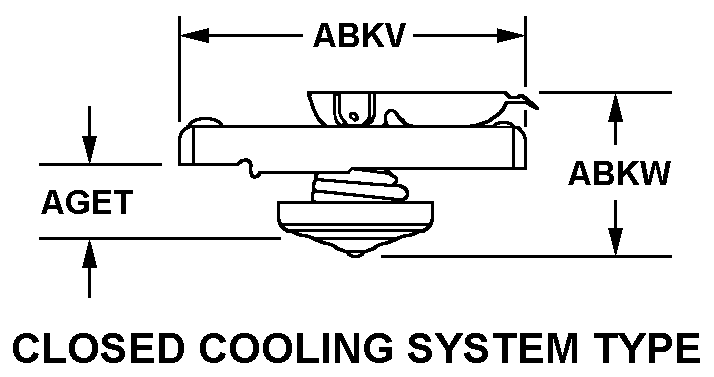

CLOSED COOLING SYSTEM TYPE
Cross Reference | NSN 2930-00-200-8138
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 33006 | 8F338 | DANIEL J. EDELMAN, INC.DBA EDELMAN |
| C1UZ8100A | 23040 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
| C1UU8100A | 23040 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
| C1UZ8100A | 57526 | FORD MOTOR COMPANY |
| AX-2401 | 78225 | STANT MFG CO INC |
| AAX0768 | 78225 | STANT MFG CO INC |
| SP21 | 78225 | STANT MFG CO INC |
| SP12 | 78225 | STANT MFG CO INC |
| SP-29 | 78225 | STANT MFG CO INC |
Technical Data | NSN 2930-00-200-8138
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLOSED COOLING SYSTEM TYPE |
| OUTSIDE DIAMETER | 3.145 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| SEALING LENGTH | 0.613 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | PRESSURIZED |
| MAXIMUM WORKING PRESSURE | 15.000 POUNDS PER SQUARE INCH |
| PRESSURE RELIEF METHOD | J$K |
| FILLER NECK DIAMETER FOR WHICH DESIGNED | 2.030 INCHES NOMINAL |
| CAM QUANTITY | 2 |
| GRIPPING ACCOMMODATION TYPE | H ANY ACCEPTABLE |
| LOCKING DEVICE TYPE | INTEGRAL SELF LOCK |
| SPECIAL MARKINGS | CAUTION LIFT UP |
