NSN 2925-00-179-7143
Part Details | AIRCRAFT ENGINE STARTER-GENERATOR
2925-00-179-7143 A rotating machine which is an accessory to and directly cranks an aircraft engine and subsequently generates direct current. The generator and starter action is not simultaneous. See also STARTER,ENGINE,ELECTRICAL and GENERATOR,ENGINE ACCESSORY. Excludes STARTER-GENERATOR,ENGINE,AIR TURBINE DRIVEN.
Alternate Parts: 23032020, 23032-020, 23032022, 23032-022, 23032022, 23032-022, 2925EG0021, 2925EG002-1, 2925EG002, 2925-00-179-7143, 00-179-7143, 2925001797143, 001797143
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | NOV 15, 1968 | 00-179-7143 | 51414 ( STARTER-GENERATOR, ENGINE, AIRCRAFT ) |
REFERENCE DRAWINGS & PICTURES

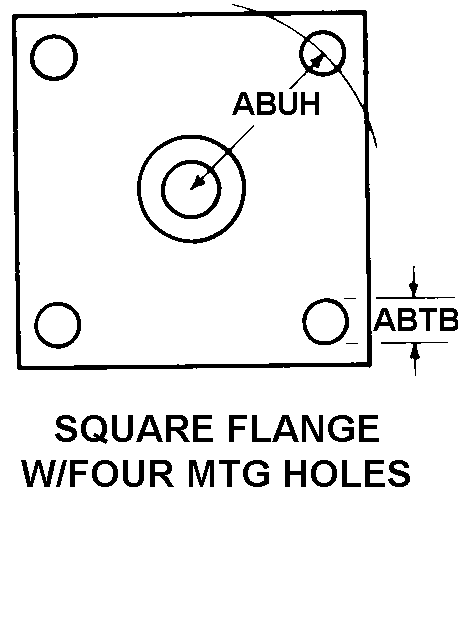

SQUARE FLANGE W/FOUR MTG HOLES
SPLINED SHAFT END
Cross Reference | NSN 2925-00-179-7143
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23032-020 | 31435 | LUCAS AEROSPACE POWER EQUIPMENTCORPORATION |
| 23032-022 | 31435 | LUCAS AEROSPACE POWER EQUIPMENTCORPORATION |
| 23032-022 | 3CPE0 | SAFRAN POWER USA, LLC |
| 2925EG002-1 | 81996 | U S ARMY AVIATION AND MISSILECOMMAND |
| 2925EG002 | 81996 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 2925-00-179-7143
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 28.0 |
| INPUT CURRENT RATING | 450.0 AMPERES NOMINAL |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 150.0 |
| GROUNDING METHOD | INTERNAL |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE |
| MOUNTING STYLE | SQUARE FLANGE W/FOUR MTG HOLES |
| MOUNTING HOLE DIAMETER | 0.339 INCHES MINIMUM AND 0.454 INCHES MAXIMUM |
| MOUNTING HOLE CIRCLE RADIUS | 2.500 INCHES MINIMUM |
| SHAFT DRIVE END STYLE | SPLINED SHAFT END |
| SPLINE MINOR DIAMETER | 0.550 INCHES MAXIMUM |
| SPLINE MAJOR DIAMETER | 0.645 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| SPLINE WIDTH | 0.070 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
| SPLINE LENGTH | 0.812 INCHES MAXIMUM |
| SPLINE QUANTITY | 12 |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY THE MFR SOURCE CONTROL REF NO.2925EG002,FSMC 81996 |
