NSN 2920-00-603-7252

Part Details | IGNITION LOCK SWITCH

2920-00-603-7252 A switch which is externally actuated by a device such as a key/cylinder lock to actuate a remote lever or rod rack to activate a remote switch. The actuation device may or may not be an integal part of the switch. The primary purpose of the switch is to open and close the ignition circuit of an internal combustion engine and actuate various accessories. Excludes SWITCH, ENGINE STARTER, ELECTRICAL and SWITCH, LOCK.

Alternate Parts: M551, 95532, 9531, 4202635, 4202635, 2067F2, 2067F2, 370E, 2920-00-603-7252, 00-603-7252, 2920006037252, 006037252

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
29JAN 01, 196300-603-725200402 ( SWITCH, LOCK, IGNITION )
REFERENCE DRAWINGS & PICTURES

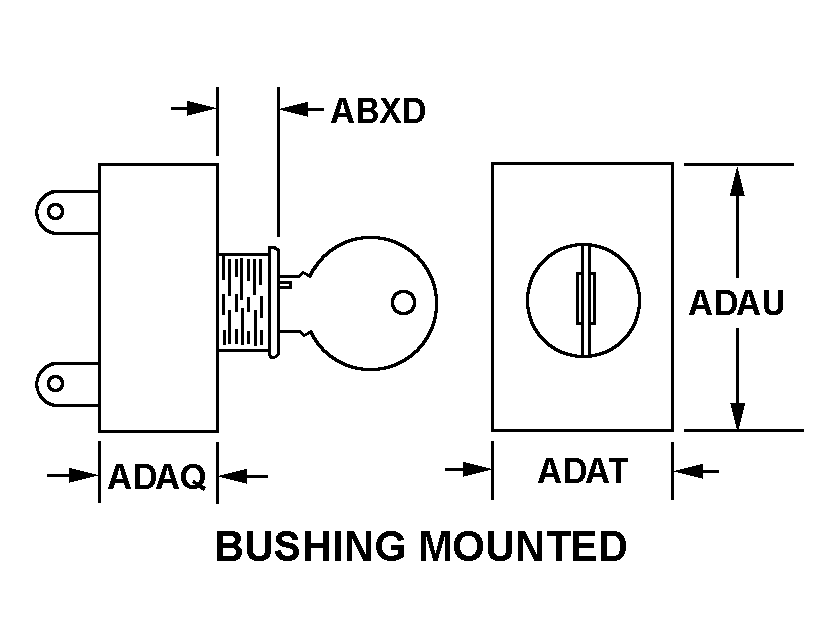

BUSHING MOUNTED

SWITCH,LOCK,IGNITIO | 2920-00-603-7252, 006037252
Cross Reference | NSN 2920-00-603-7252
Part Number Cage Code Manufacturer
M55113445COLE HERSEE COMPANY
9553213445COLE HERSEE COMPANY
953113445COLE HERSEE COMPANY
420263534161KOEHRING CO
42026358E499KOEHRING CRANES AND EXCAVATORS INCSUB OF NORTHWEST ENGINEERING CO
2067F245152OSHKOSH CORPORATION
2067F275Q65OSHKOSH DEFENSE, LLC
370E57733STEWART-WARNER CORPORATION
Technical Data | NSN 2920-00-603-7252
Characteristic Specifications
BODY STYLE BUSHING MOUNTED
TERMINAL TYPE AND QUANTITY2 TAB W/SCREW
INCLOSURE TYPE FULLY INCLOSED
THREAD SERIES DESIGNATOR UN
NOMINAL THREAD SIZE0.812 INCHES
THREAD QUANTITY PER INCH24
