NSN 2920-00-294-3913
Part Details | ENGINE ACCESSORY GENERATOR
2920-00-294-3913 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.
Alternate Parts: 1106520, 1106520, 1106520, 1106520, 2920-00-294-3913, 00-294-3913, 2920002943913, 002943913
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-294-3913 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
REFERENCE DRAWINGS & PICTURES

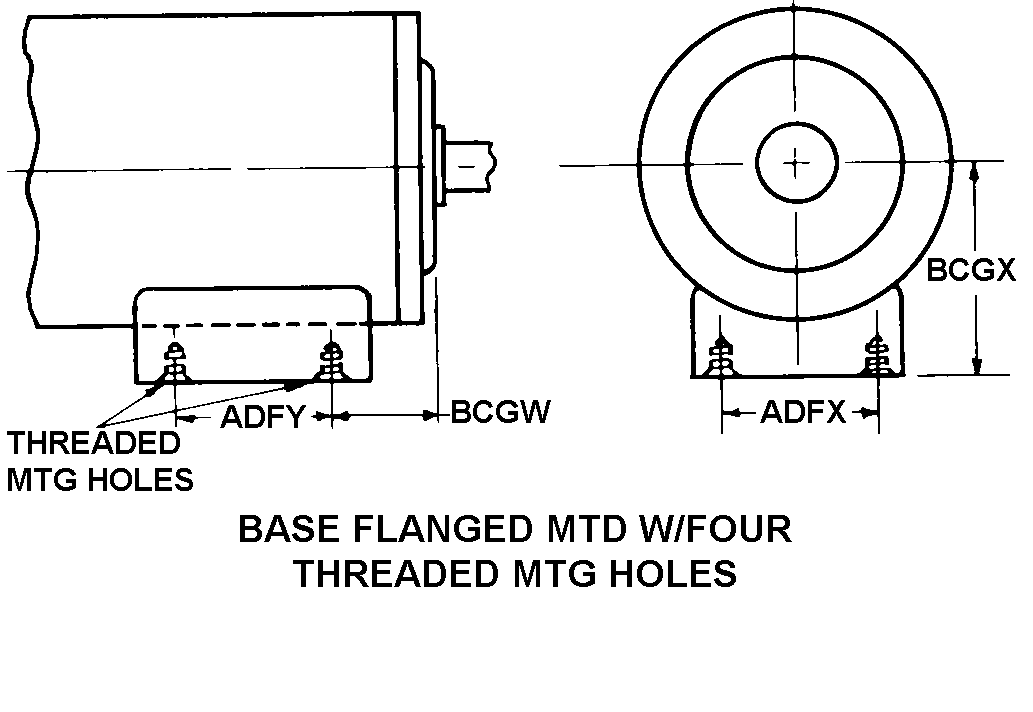

BASE FLANGED MTD W/ FOUR THREADED MTG HOLES
STRAIGHT SHAFT END, THREADED, W/KEYWAY
Cross Reference | NSN 2920-00-294-3913
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1106520 | 24617 | GENERAL MOTORS CORP |
| 1106520 | 61928 | GENERAL MOTORS CORPAC-DELCO DIV |
| 1106520 | 16764 | GENERAL MOTORS CORPDELCO REMY DIV |
| 1106520 | 1LW55 | REMY, INC. |
Technical Data | NSN 2920-00-294-3913
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 24.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 10.0 |
| MAXIMUM RATED ARMATURE SPEED IN RPM | 3000 |
| ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT | 1125 |
| MINIMUM CURRENT CUT-IN SPEED IN RPM | 975 |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| MOUNTING STYLE | BASE FLANGED MTD W/ FOUR THREADED MTG HOLES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 2.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 2.500 INCHES NOMINAL |
| DISTANCE FROM RAISED FACE TO FIRST MOUNTING HOLE CENTER | 2.250 INCHES NOMINAL |
| DISTANCE FROM SHAFT CENTERLINE TO MOUNTING FLANGE SURFACE | 3.125 INCHES NOMINAL |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE THREAD DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 16 |
| MOUNTING HOLE THREAD CLASS | 2B |
| MOUNTING HOLE THREAD DIRECTION | RIGHT-HAND |
| SHAFT DRIVE END STYLE | STRAIGHT SHAFT END, THREADED, W/KEYWAY |
| THREAD LENGTH | 0.500 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.874 INCHES NOMINAL |
| KEYWAY WIDTH | 0.156 INCHES NOMINAL |
| UNTHREADED PORTION LENGTH | 1.312 INCHES NOMINAL |
| KEYWAY LENGTH | 0.750 INCHES NOMINAL |
| DISTANCE FROM END TO KEYWAY CENTER | 1.109 INCHES NOMINAL |
| THREAD SERIES | UNF |
| THREAD DIAMETER | 0.625 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FUNGUS RESISTANT |
| FURNISHED ITEMS | COOLING FAN AND WOODRUFF KEY |
