NSN 2920-00-294-3479
Part Details | ENGINE ACCESSORY GENERATOR
2920-00-294-3479 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.
Alternate Parts: 0E1629, 1105906, 1105906, 1105906, 1105906, 1105906, 5639535, 2920-00-294-3479, 00-294-3479, 2920002943479, 002943479
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-294-3479 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
REFERENCE DRAWINGS & PICTURES

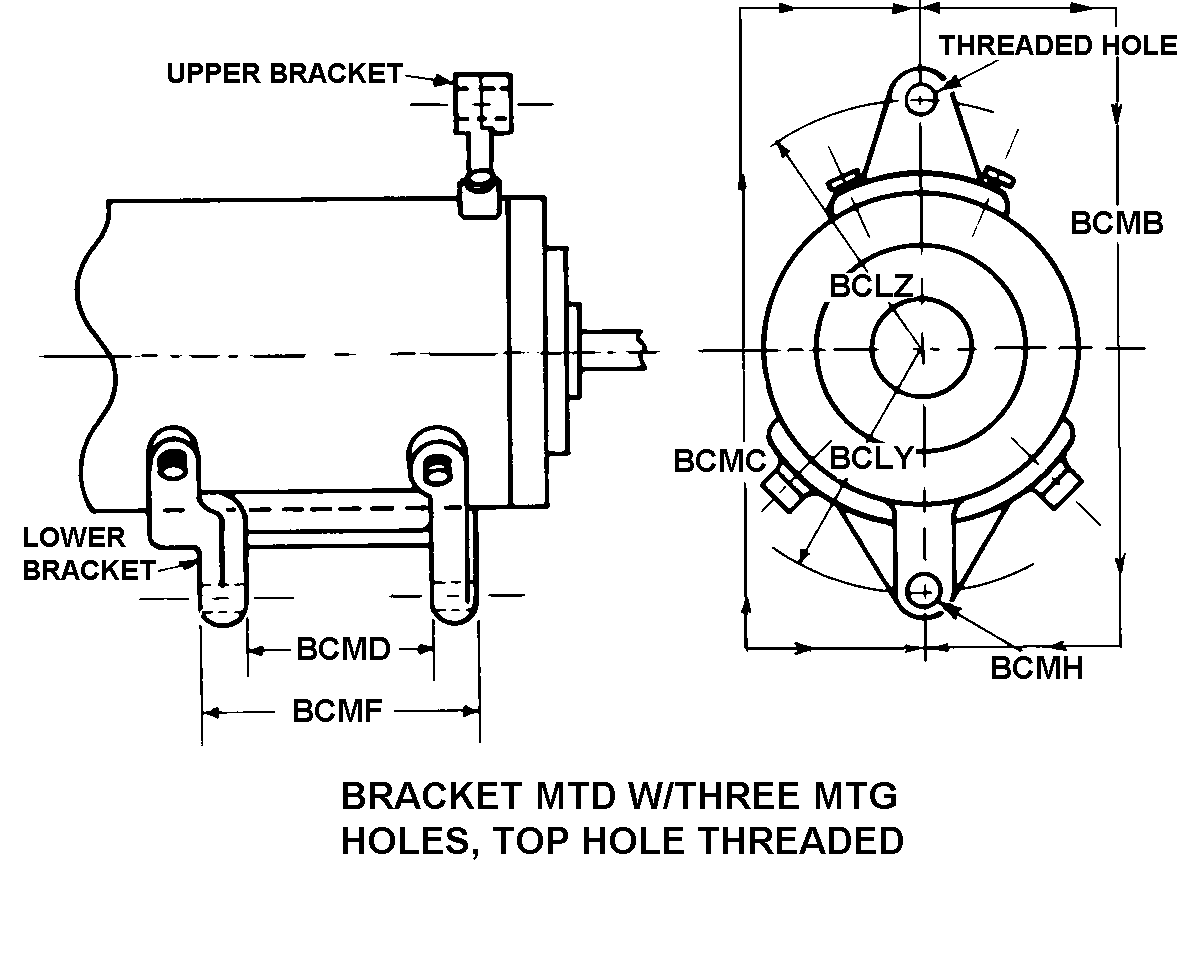

BRACKET MTD W/THREE MTG HOLES, TOP HOLE THREADED
SPLINED SHAFT END, THREADED
Cross Reference | NSN 2920-00-294-3479
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0E1629 | 92392 | ALLIS-CHALMERS CORP |
| 1105906 | 24617 | GENERAL MOTORS CORP |
| 1105906 | 61928 | GENERAL MOTORS CORPAC-DELCO DIV |
| 1105906 | 16764 | GENERAL MOTORS CORPDELCO REMY DIV |
| 1105906 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 1105906 | 1LW55 | REMY, INC. |
| 5639535 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2920-00-294-3479
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 12.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 26.0 |
| MAXIMUM RATED ARMATURE SPEED IN RPM | 1800 |
| ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT | 1500 |
| MINIMUM CURRENT CUT-IN SPEED IN RPM | 880 |
| GROUNDING METHOD | INTERNAL |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| MOUNTING STYLE | BRACKET MTD W/THREE MTG HOLES, TOP HOLE THREADED |
| DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER | 3.875 INCHES NOMINAL |
| DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER | 3.500 INCHES NOMINAL |
| DISTANCE BETWEEN INSIDE SURFACES OF HINGE BRACKET | 7.243 INCHES MINIMUM AND 7.257 INCHES MAXIMUM |
| DISTANCE BETWEEN OUTSIDE SURFACES OF HINGE BRACKET | 8.181 INCHES MINIMUM AND 8.195 INCHES MAXIMUM |
| BOTTOM MOUNTING HOLE DIAMETER | 0.328 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
| ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG | 8.0 |
| ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG | 201.0 |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE THREAD DIAMETER | 0.438 INCHES NOMINAL |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 14 |
| MOUNTING HOLE THREAD CLASS | 2B |
| MOUNTING HOLE THREAD DIRECTION | RIGHT-HAND |
| SHAFT DRIVE END STYLE | SPLINED SHAFT END, THREADED |
| THREAD LENGTH | 0.906 INCHES NOMINAL |
| SPLINE MAJOR DIAMETER | 0.874 INCHES NOMINAL |
| SPLINE WIDTH | 0.216 INCHES MINIMUM AND 0.217 INCHES MAXIMUM |
| SPLINE LENGTH | 1.938 INCHES NOMINAL |
| SPLINE QUANTITY | 6 |
| THREAD SERIES | UNF |
| THREAD DIAMETER | 0.625 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
| COTTER PIN HOLE | INCLUDED |
