NSN 2920-00-096-9366

Part Details | IGNITION LOCK SWITCH

2920-00-096-9366 A switch which is externally actuated by a device such as a key/cylinder lock to actuate a remote lever or rod rack to activate a remote switch. The actuation device may or may not be an integal part of the switch. The primary purpose of the switch is to open and close the ignition circuit of an internal combustion engine and actuate various accessories. Excludes SWITCH, ENGINE STARTER, ELECTRICAL and SWITCH, LOCK.

Alternate Parts: AT145930, AT25257, AT145930, AT37390, AT25257, AT25257, AT25257, AT25257, AT25257, AT25257, 31159, LS159, LS159, 2920-00-096-9366, 00-096-9366, 2920000969366, 000969366

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
29DEC 06, 197200-096-936600402 ( SWITCH, LOCK, IGNITION )
REFERENCE DRAWINGS & PICTURES

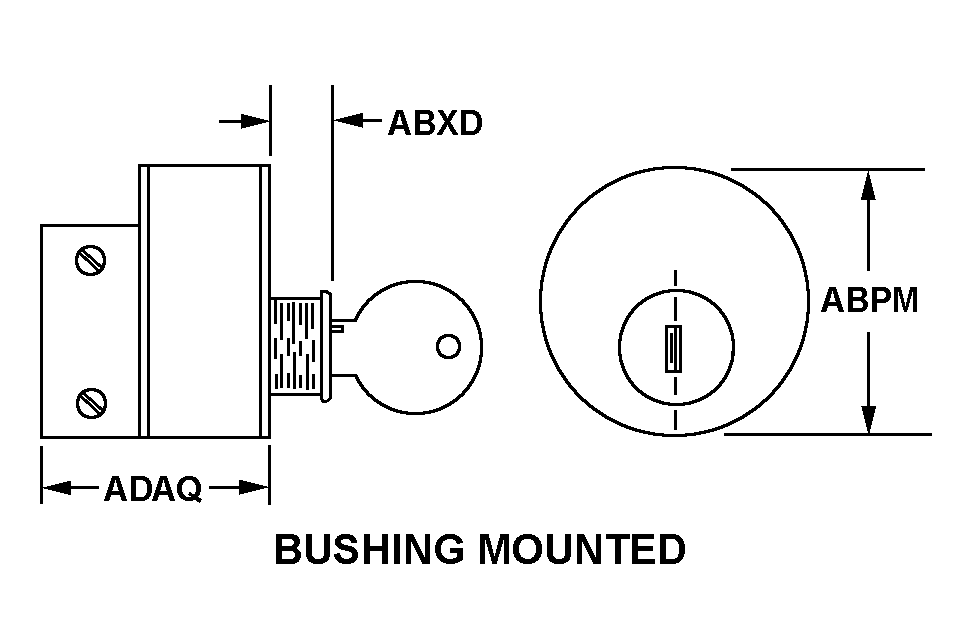

BUSHING MOUNTED

SWITCH,LOCK,IGNITIO | 2920-00-096-9366, 000969366
Cross Reference | NSN 2920-00-096-9366
Part Number Cage Code Manufacturer
AT14593075160DEERE & CO
AT2525775160DEERE & CO
AT14593075755DEERE & COMPANYDBA JOHN DEERE
AT3739006021DEERE AND CO
AT2525788702DEERE AND CO
AT2525706021DEERE AND CO
AT252579R569DEERE AND CODEERE JOHN PARTS DISTRIBUTION WHSE
AT2525792467DEERE JOHN DES MOINES WORKS
AT2525773349DEERE JOHN HARVESTER WORKS
AT2525792836JOHN DEERE TRACTOR WORKSSUB OF DEERE AND CO
3115977326POLLAK JOSEPH CORP
LS15977326POLLAK JOSEPH CORP
LS15959492QUARTZTEK INC
Technical Data | NSN 2920-00-096-9366
Characteristic Specifications
BODY STYLE BUSHING MOUNTED
BODY DIAMETER1.800 INCHES NOMINAL
BUSHING LENGTH0.630 INCHES NOMINAL
BODY LENGTH2.229 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY4 THREADED STUD
INCLOSURE TYPE FULLY INCLOSED
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION DUSTPROOF AND MOISTURE PROOF
END ITEM IDENTIFICATION3805-00-283-2749
