NSN 2920-00-090-5515
Part Details | ENGINE GENERATOR REGULATOR
2920-00-090-5515 A regulator designed to automatically maintain the current and/or voltage output of an engine generator within specified limits, regardless of variation of load or input voltages. May include cutout relay. Does not include items in which regulation is accomplished by transformer action. See also REGULATOR, CURRENT and REGULATOR, VOLTAGE.
Alternate Parts: 5907, 5907, 5907, 5907, 7095, 5907, 2920-00-090-5515, 00-090-5515, 2920000905515, 000905515
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-090-5515 | 17169 ( REGULATOR, ENGINE GENERATOR ) |
REFERENCE DRAWINGS & PICTURES

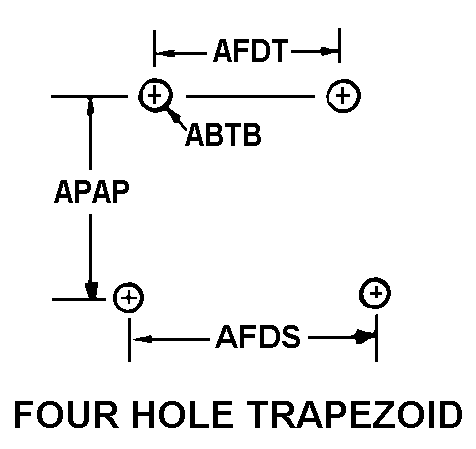

FOUR HOLE TRAPEZOID
Cross Reference | NSN 2920-00-090-5515
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5907 | 30379 | EUCLID INC |
| 5907 | 24617 | GENERAL MOTORS CORP |
| 5907 | 61928 | GENERAL MOTORS CORPAC-DELCO DIV |
| 5907 | 16764 | GENERAL MOTORS CORPDELCO REMY DIV |
| 7095 | 36024 | LIBBY POWER SYSTEMS LLC |
| 5907 | 1LW55 | REMY, INC. |
Technical Data | NSN 2920-00-090-5515
| Characteristic | Specifications |
|---|---|
| SYSTEM VOLTAGE RATING | 12.0 |
| SYSTEM GROUND POLARITY | NEGATIVE |
| VOLTAGE REGULATOR UNIT TYPE | WIRE WOUND COIL |
| VOLTAGE REGULATOR UNIT QUANTITY | 1 |
| OUTPUT VOLTAGE RATING IN VOLTS | 12.0 NOMINAL |
| CIRCUIT CONTROL DEVICE TYPE | CUTOUT RELAY |
| REVERSE CURRENT OVERLOAD CIRCUIT BREAKER | NOT INCLUDED |
| FIELD RELAY UNIT | NOT INCLUDED |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 4 |
| TERMINAL ENCASEMENT | NOT ENCASED |
| MOUNTING STYLE | FOUR HOLE TRAPEZOID |
| MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 4.250 INCHES NOMINAL |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 3.575 INCHES NOMINAL |
| VERTICAL DISTANCE BETWEEN HOLES | 3.875 INCHES NOMINAL |
| SHOCK MOUNT | NOT PROVIDED |
