NSN 2920-00-088-9310
Part Details | GLOW PLUG
2920-00-088-9310 An item with a resistance type heating element for igniting fuel-air mixtures in ENGINE, DIESEL. Used for starting engines only. Excludes SPARK PLUG.
Alternate Parts: CH48, AJ48, 06A843G048, CH48, 210649, 2920000889310, 06A843G048, 2920-00-088-9310, 00-088-9310, 2920000889310, 000889310
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | APR 21, 1972 | 00-088-9310 | 17310 ( GLOW PLUG ) |

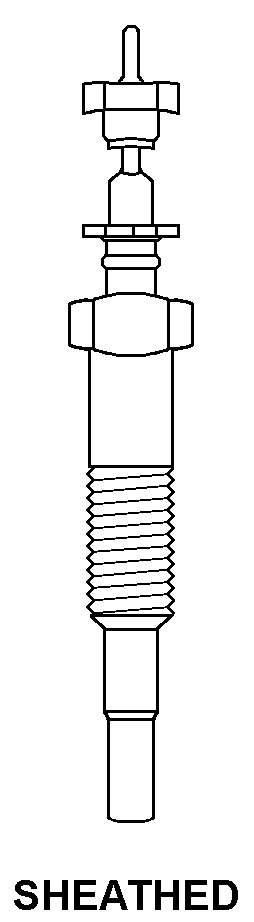

REFERENCE DRAWINGS & PICTURES
SHEATHED
Cross Reference | NSN 2920-00-088-9310
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CH48 | 0AFL4 | CHAMPION AEROSPACE LLC |
| AJ48 | 0AFL4 | CHAMPION AEROSPACE LLC |
| 06A843G048 | 0B231 | CHAMPION AVIATION INCAUTOMOTIVE DIV |
| CH48 | 0B231 | CHAMPION AVIATION INCAUTOMOTIVE DIV |
| 210649 | 15434 | CUMMINS INC. |
| 2920000889310 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 06A843G048 | 3HCM3 | W A P, L.L.C.DBA PURE FLOW AIRDOG |
Technical Data | NSN 2920-00-088-9310
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7 SHEATHED |
| MOUNTING FACILITY NOMINAL THREAD SIZE | 18.000 MILLIMETERS |
| DISTANCE ACROSS WRENCHING SURFACE FLATS | 0.750 INCHES |
| OPERATING VOLTAGE IN VOLTS | 6.0 NOMINAL |
| WATTAGE RATING | 180.000 WATTS |
