NSN 2920-00-064-4519
Part Details | GLOW PLUG
2920-00-064-4519 An item with a resistance type heating element for igniting fuel-air mixtures in ENGINE, DIESEL. Used for starting engines only. Excludes SPARK PLUG.
Alternate Parts: AT23537, AT16499T, AT2357, AT23537, 2920-00-064-4519, 00-064-4519, 2920000644519, 000644519
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JUN 24, 1967 | 00-064-4519 | 17310 ( GLOW PLUG ) |

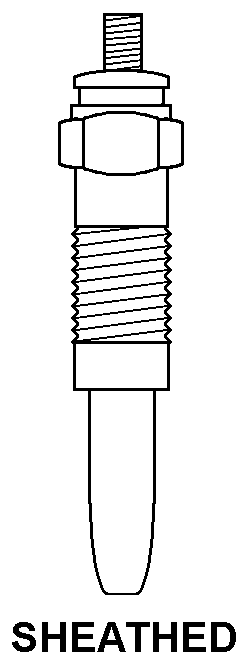

REFERENCE DRAWINGS & PICTURES
SHEATHED
Cross Reference | NSN 2920-00-064-4519
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AT23537 | 75160 | DEERE & CO |
| AT16499T | 75160 | DEERE & CO |
| AT2357 | 75160 | DEERE & CO |
| AT23537 | 75755 | DEERE & COMPANYDBA JOHN DEERE |
Technical Data | NSN 2920-00-064-4519
| Characteristic | Specifications |
|---|---|
| BODY STYLE | SHEATHED |
| MOUNTING FACILITY NOMINAL THREAD SIZE | 0.375 INCHES |
| OPERATING VOLTAGE IN VOLTS | 11.0 NOMINAL |
| CURRENT RATING IN AMPS | 9.5 |
| WATTAGE RATING | 35.000 WATTS |
| OVERALL LENGTH | 3.531 INCHES NOMINAL |
