NSN 2920-00-057-6872
Part Details | ELECTRICAL ENGINE STARTER
2920-00-057-6872 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.
Alternate Parts: 2873213, 2920-00-057-6872, 00-057-6872, 2920000576872, 000576872
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JUN 06, 1967 | 00-057-6872 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES
OVAL

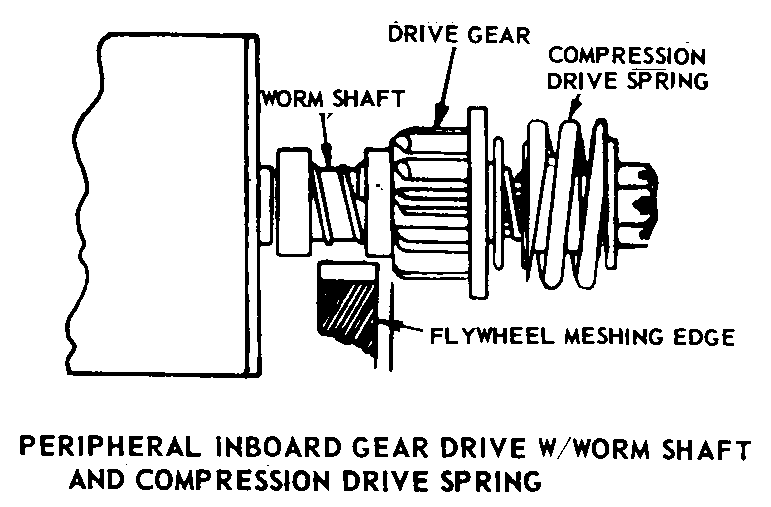

PERIPHERAL INBOARD GEAR DRIVE W/WORM SHAFT AND COMPRESSION DRIVE SPRING
Cross Reference | NSN 2920-00-057-6872
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2873213 | 03798 | WESTERBEKE CORPORATION |
Technical Data | NSN 2920-00-057-6872
| Characteristic | Specifications |
|---|---|
| ENGAGING MECHANISM STYLE | PERIPHERAL INBOARD GEAR DRIVE W/WORM SHAFT AND COMPRESSION DRIVE SPRING |
| MOUNTING FLANGE SHAPE STYLE | OVAL |
| MOUNTING HOLE DIAMETER | 0.437 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 2.875 INCHES NOMINAL |
| MOUNTING FLANGE ANGULAR DEVIATION IN DEG | 0.0 |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE |
| ARMATURE ACTUATION DEVICE TYPE | SWITCH |
| ENGAGING MECHANISM TO ARMATURE POSITIONAL RELATIONSHIP | STRAIGHT |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
