NSN 2920-00-033-5033
Part Details | IGNITION COIL
2920-00-033-5033 An item specifically designed to produce the high voltage necessary to provide a spark for igniting combustible mixtures, primarily in internal combustion engines.
Alternate Parts: 2920057360, 2920-057360, 1330244, 2920-00-033-5033, 00-033-5033, 2920000335033, 000335033
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-033-5033 | 00303 ( COIL, IGNITION ) |
REFERENCE DRAWINGS & PICTURES

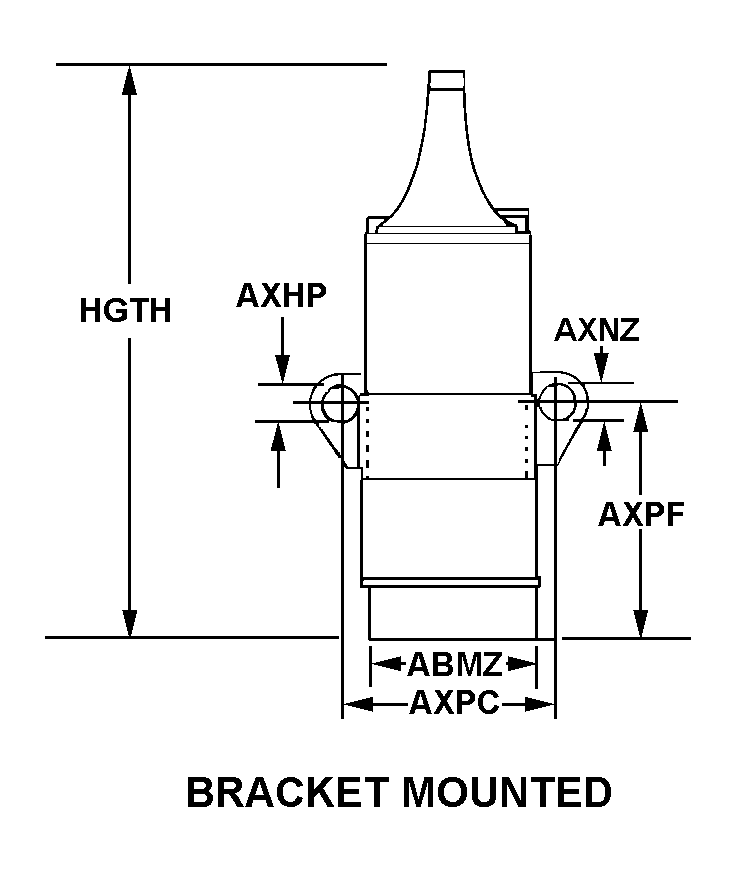

BRACKET MOUNTED
Cross Reference | NSN 2920-00-033-5033
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2920-057360 | 81336 | CHIEF OF ENGINEERSDEPT OF ARMY |
| 1330244 | 12204 | DAIMLER CHRYSLER |
Technical Data | NSN 2920-00-033-5033
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BRACKET MOUNTED |
| DIAMETER | 2.234 INCHES NOMINAL |
| FIRST MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| SECOND MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND MOUNTING HOLES | 2.344 INCHES NOMINAL |
| DISTANCE FROM BASE OF COIL TO MOUNTING | 2.125 INCHES NOMINAL |
| HEIGHT | 5.625 INCHES NOMINAL |
| DC PRIMARY VOLTAGE RATING | 6.0 VOLTS NOMINAL |
| HIGH VOLTAGE TERMINAL TYPE | FRICTION |
| HIGH VOLTAGE TERMINAL QUANTITY | 1 |
| LOW VOLTAGE TERMINAL TYPE | THREADED STUD |
| LOW VOLTAGE TERMINAL QUANTITY | 2 |
| GROUND TERMINAL | NOT PROVIDED |
| INCLOSURE MATERIAL TYPE | METALLIC |
| FILLING MEDIUM | COMPOUND |
| ENVIRONMENTAL PROTECTION | TROPICALIZED |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| MOUNTING REMOVABILITY | REMOVABLE |
