NSN 2920-00-029-0055
Part Details | ENGINE GENERATOR REGULATOR
2920-00-029-0055 A regulator designed to automatically maintain the current and/or voltage output of an engine generator within specified limits, regardless of variation of load or input voltages. May include cutout relay. Does not include items in which regulation is accomplished by transformer action. See also REGULATOR, CURRENT and REGULATOR, VOLTAGE.
Alternate Parts: 8RH2012, 15107, 15-107, 18RD2001, 170C44993C, 8RH2012, 8RB2005, 576, 5-76, 5701, 5-701, 5134, 5-134, M5701A, M5-701A, 2920-00-029-0055, 00-029-0055, 2920000290055, 000290055
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | OCT 19, 1972 | 00-029-0055 | 17169 ( REGULATOR, ENGINE GENERATOR ) |
REFERENCE DRAWINGS & PICTURES

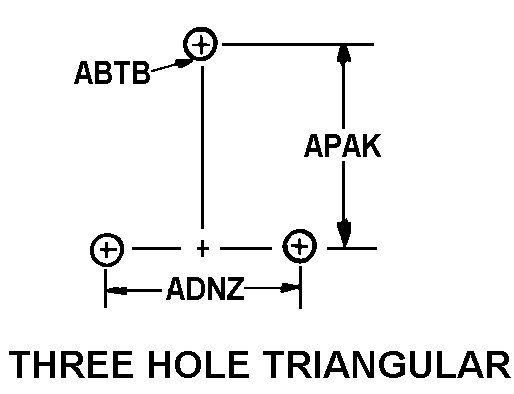

THREE HOLE TRIANGULAR
Cross Reference | NSN 2920-00-029-0055
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8RH2012 | 0MXH8 | ALLIANCE COMMUNICATIONS INC |
| 15-107 | 63121 | HYBRITEX AUTOMOTIVE CONTROLS INCDIV OF ALLISON INDUSTRIES |
| 18RD2001 | 63121 | HYBRITEX AUTOMOTIVE CONTROLS INCDIV OF ALLISON INDUSTRIES |
| 170C44993C | 63121 | HYBRITEX AUTOMOTIVE CONTROLS INCDIV OF ALLISON INDUSTRIES |
| 8RH2012 | 31211 | MOTOROLA AUTOMOTIVE ELECTRONICS |
| 8RB2005 | 31211 | MOTOROLA AUTOMOTIVE ELECTRONICS |
| 5-76 | 31211 | MOTOROLA AUTOMOTIVE ELECTRONICS |
| 5-701 | 31211 | MOTOROLA AUTOMOTIVE ELECTRONICS |
| 5-134 | 31211 | MOTOROLA AUTOMOTIVE ELECTRONICS |
| M5-701A | 66377 | TRANSPO ELECTRONICS INC |
Technical Data | NSN 2920-00-029-0055
| Characteristic | Specifications |
|---|---|
| SYSTEM VOLTAGE RATING | 12.0 |
| SYSTEM GROUND POLARITY | NEGATIVE |
| VOLTAGE REGULATOR UNIT TYPE | TRANSISTOR |
| VOLTAGE REGULATOR UNIT QUANTITY | 1 |
| CIRCUIT CONTROL DEVICE TYPE | SWITCH |
| REVERSE CURRENT OVERLOAD CIRCUIT BREAKER | NOT INCLUDED |
| FIELD RELAY UNIT | NOT INCLUDED |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE W/INTERNAL CONTACTS |
| TERMINAL QUANTITY | 4 |
| TERMINAL ENCASEMENT | ENCASED |
| CONDUIT CONNECTION QUANTITY | 2 |
| MOUNTING STYLE | THREE HOLE TRIANGULAR |
| MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 1.560 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES ALONG WIDTH AND HOLE ALONG LENGTH | 2.500 INCHES NOMINAL |
| SHOCK MOUNT | NOT PROVIDED |
