NSN 2920-00-021-2267

Part Details | ELECTRICAL ENGINE STARTER

2920-00-021-2267 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.

Alternate Parts: 1675764, 1675764, 1107350, 1107350, 1107350, 606027R92, 1107350, 2920-00-021-2267, 00-021-2267, 2920000212267, 000212267

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
29APR 27, 196700-021-226703577 ( STARTER, ENGINE, ELECTRICAL )
REFERENCE DRAWINGS & PICTURES

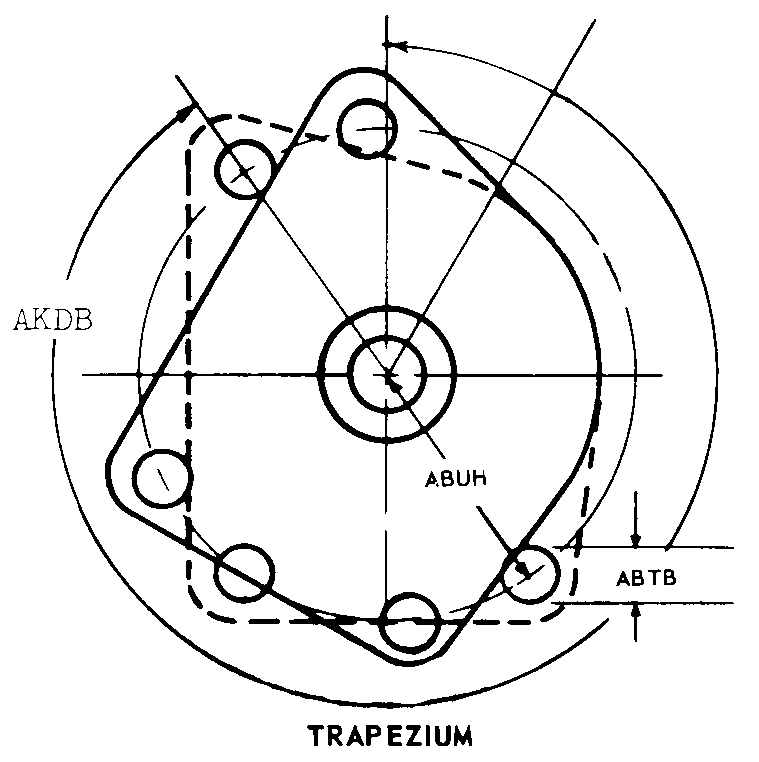

TRAPEZIUM

STARTER,ENGINE,ELEC | 2920-00-021-2267, 000212267

PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT AND FRICTION CLUTCH W/DRIVE HOUSING

STARTER,ENGINE,ELEC | 2920-00-021-2267, 000212267
Cross Reference | NSN 2920-00-021-2267
Part Number Cage Code Manufacturer
167576412603CLARK EQUIPMENT CO
167576477237DANA OFF HIGHWAY PRODUCTS, LLC
110735024617GENERAL MOTORS CORP
110735061928GENERAL MOTORS CORPAC-DELCO DIV
110735016764GENERAL MOTORS CORPDELCO REMY DIV
606027R9292679NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION
11073501LW55REMY, INC.
Technical Data | NSN 2920-00-021-2267
Characteristic Specifications
ENGAGING MECHANISM STYLE7 PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT AND FRICTION CLUTCH W/DRIVE HOUSING
ENGAGING MECHANISM OPENING ANGULAR DEVIATION IN DEG125.0
LEVER ACTUATION METHOD SOLENOID
MOUNTING FLANGE SHAPE STYLE TRAPEZIUM
MOUNTING HOLE DIAMETER0.414 INCHES MINIMUM AND 0.434 INCHES MAXIMUM
MOUNTING HOLE CIRCLE RADIUS2.500 INCHES NOMINAL
MOUNTING FLANGE ANGULAR DEVIATION IN DEG215.0
VOLTAGE IN VOLTS12.0
SHAFT ROTATION DIRECTION CLOCKWISE
ARMATURE ACTUATION DEVICE TYPE RELAY-SOLENOID
ENGAGING MECHANISM TO ARMATURE POSITIONAL RELATIONSHIP STRAIGHT
TERMINAL TYPE AND QUANTITY3 THREADED STUD
