NSN 2920-00-018-6306
Part Details | ELECTRICAL ENGINE STARTER
2920-00-018-6306 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.
Alternate Parts: MHA7004, MHA61037, MHA6103S, MHA6103, MHA6103S, MHA7004, MHA-7004, MDY7006, MDY-7006, SAW10186306, SAW-10186306, YA26A, YA-26A, 2920-00-018-6306, 00-018-6306, 2920000186306, 000186306
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | MAY 10, 1968 | 00-018-6306 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

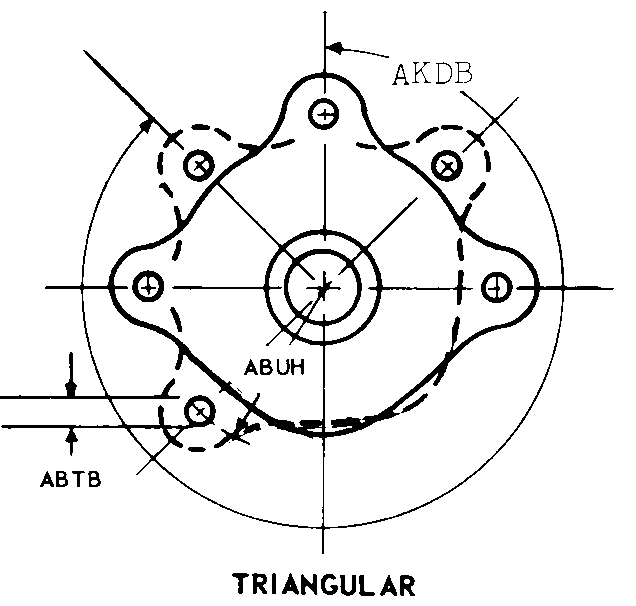

TRIANGULAR

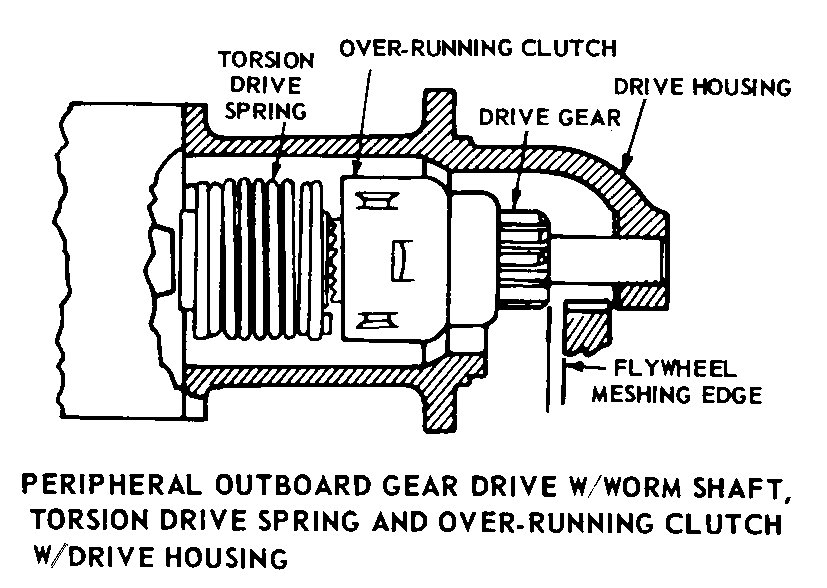

PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT, TORSION DRIVE SPRING AND OVER-RUNNING CLUTCH W/DRIVE HOUSING
Cross Reference | NSN 2920-00-018-6306
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MHA7004 | 68505 | PRESTOLITE ELECTRIC INC |
| MHA61037 | 68505 | PRESTOLITE ELECTRIC INC |
| MHA6103S | 68505 | PRESTOLITE ELECTRIC INC |
| MHA6103 | 68505 | PRESTOLITE ELECTRIC INC |
| MHA6103S | 24975 | PRESTOLITE ELECTRIC INCORPORATEDDBA PRESTOLITE ELECTRIC |
| MHA-7004 | 19728 | PRESTOLITEDIV OF BUNKER RAMO-ELTRA CORP |
| MDY-7006 | 19728 | PRESTOLITEDIV OF BUNKER RAMO-ELTRA CORP |
| SAW-10186306 | 1Y875 | SOUTHERN AUTOMOTIVE WHOLESALERS,INC. |
| YA-26A | 66289 | WISCONSIN MOTORS LLC |
Technical Data | NSN 2920-00-018-6306
| Characteristic | Specifications |
|---|---|
| ENGAGING MECHANISM STYLE | PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT, TORSION DRIVE SPRING AND OVER-RUNNING CLUTCH W/DRIVE HOUSING |
| ENGAGING MECHANISM OPENING ANGULAR DEVIATION IN DEG | 210.0 |
| MOUNTING FLANGE SHAPE STYLE | TRIANGULAR |
| MOUNTING HOLE DIAMETER | 0.401 INCHES MINIMUM AND 0.411 INCHES MAXIMUM |
| MOUNTING HOLE CIRCLE RADIUS | 2.500 INCHES NOMINAL |
| MOUNTING FLANGE ANGULAR DEVIATION IN DEG | 30.0 |
| VOLTAGE IN VOLTS | 12.0 |
| LOCK TEST CURRENT RATING IN AMPS | 200.0 |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE |
| ARMATURE ACTUATION DEVICE TYPE | RELAY |
| ENGAGING MECHANISM TO ARMATURE POSITIONAL RELATIONSHIP | STRAIGHT |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
