NSN 2810-00-338-1108

Part Details | PISTON PIN PLUG

2810-00-338-1108 A cylindrically-shaped unthreaded item specifically designed to mate with and prevent a piston pin from working out against the side of a cylinder wall. Excludes PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.

Alternate Parts: 202444CLASSB, 202444CLASSB, 2810-00-338-1108, 00-338-1108, 2810003381108, 003381108

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
28JAN 01, 196300-338-110822332 ( PLUG, PISTON PIN )

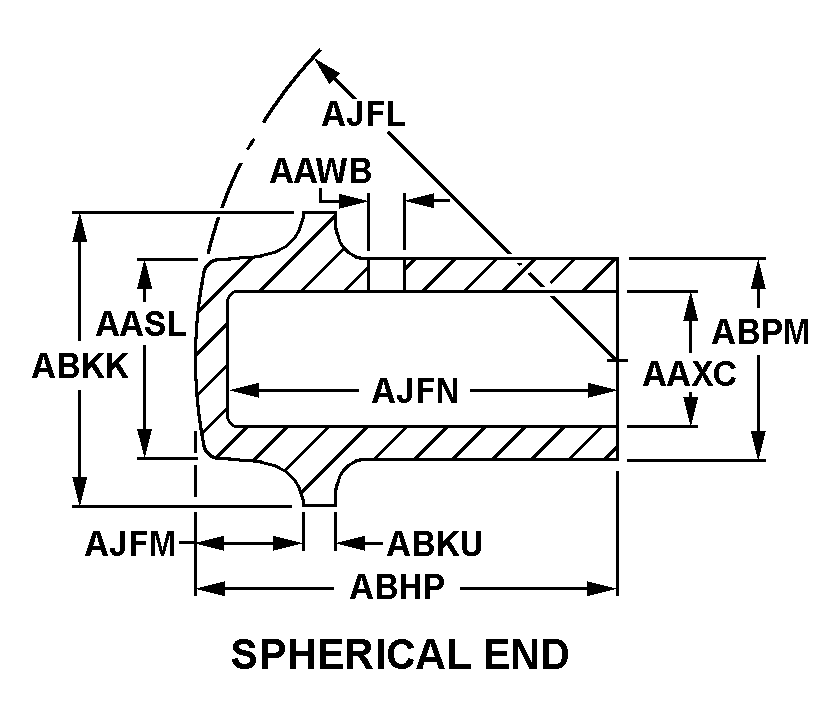

REFERENCE DRAWINGS & PICTURES

SPHERICAL END

PLUG,PISTON PIN | 2810-00-338-1108, 003381108
Cross Reference | NSN 2810-00-338-1108
Part Number Cage Code Manufacturer
202444CLASSB00198PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP.
202444CLASSB77445UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS
Technical Data | NSN 2810-00-338-1108
Characteristic Specifications
STYLE DESIGNATOR SPHERICAL END
HEAD DIAMETER0.940 INCHES NOMINAL
SHANK UNTHREADED HOLE DIAMETER0.099 INCHES NOMINAL
CONCENTRIC HOLE DIAMETER0.450 INCHES NOMINAL
OVERALL LENGTH1.100 INCHES NOMINAL
FLANGE DIAMETER1.320 INCHES NOMINAL
FLANGE THICKNESS0.150 INCHES NOMINAL
BODY DIAMETER0.945 INCHES MINIMUM AND 0.946 INCHES MAXIMUM
SPHERICAL RADIUS2.790 INCHES NOMINAL
END TO FLANGE DISTANCE0.262 INCHES NOMINAL
CONCENTRIC HOLE LENGTH0.950 INCHES NOMINAL
FSC APPLICATION DATAACFT ENG R2800
