NSN 2810-00-118-9499
Part Details | VALVE SPRING RETAINER LOCK
2810-00-118-9499 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.
Alternate Parts: 17018, 2810-00-118-9499, 00-118-9499, 2810001189499, 001189499
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-118-9499 | 15883 ( LOCK, VALVE SPRING RETAINER ) |
REFERENCE DRAWINGS & PICTURES

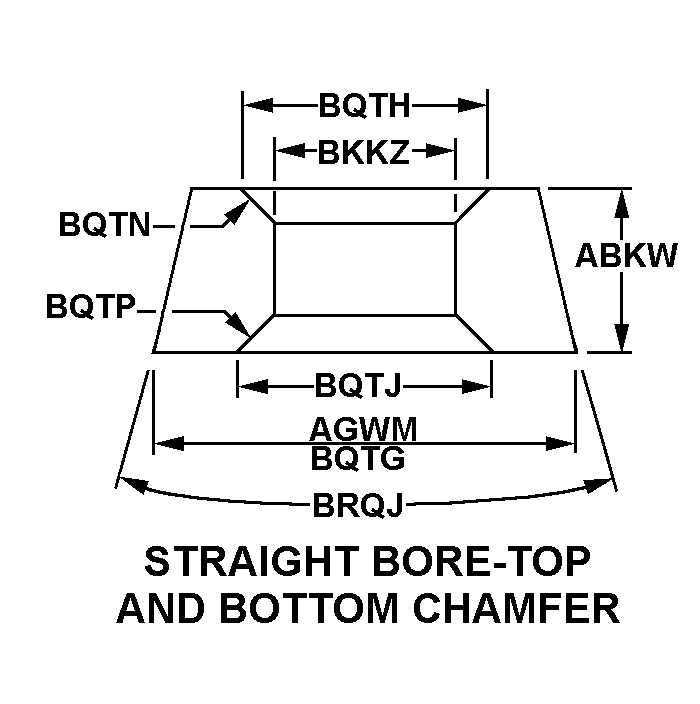

STRAIGHT BORE-TOP AND BOTTOM CHAMFER
Cross Reference | NSN 2810-00-118-9499
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17018 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
Technical Data | NSN 2810-00-118-9499
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| STYLE DESIGNATOR | STRAIGHT BORE-TOP AND BOTTOM CHAMFER |
| OVERALL HEIGHT | 0.371 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |
| LARGEST OUTSIDE DIAMETER | 0.615 INCHES MINIMUM AND 0.617 INCHES MAXIMUM |
| MINIMUM INSIDE DIAMETER | 0.340 INCHES |
| LARGEST TOP COUNTERSINK DIAMETER | 0.383 INCHES MINIMUM AND 0.387 INCHES MAXIMUM |
| LARGEST BOTTOM COUNTERSINK DIAMETER | 0.383 INCHES MINIMUM AND 0.387 INCHES MAXIMUM |
| TOP COUNTERSINK INCLUDED ANGLE IN DEG | 60.0 |
| BOTTOM COUNTERSINK INCLUDED ANGLE IN DEG | 60.0 |
| OUTSIDE INCLUDED ANGLE IN DEG | 15.0 |
| THREAD PROVISION | UNTHREADED |
| FSC APPLICATION DATA | ENGINE,AIRCRAFT,RECIPROCATING |
