NSN 2810-00-118-9452
Part Details | PISTON PIN
2810-00-118-9452 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.
Alternate Parts: AS35876, 35876, 35876, 2810-00-118-9452, 00-118-9452, 2810001189452, 001189452
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-118-9452 | 16414 ( PIN, PISTON ) |
REFERENCE DRAWINGS & PICTURES
PLAIN ENDS

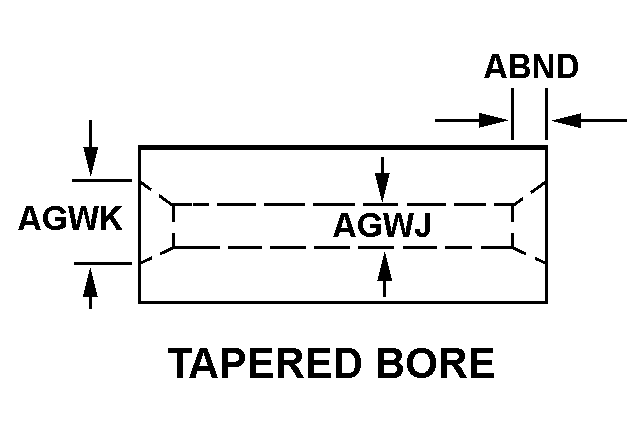

TAPERED BORE
Cross Reference | NSN 2810-00-118-9452
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS35876 | 12776 | AIRCRAFT SUPPLIES |
| 35876 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
| 35876 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 2810-00-118-9452
| Characteristic | Specifications |
|---|---|
| METALLIC HARDNESS RATING | 47.0 MINIMUM ROCKWELL C AND 50.0 MAXIMUM ROCKWELL C |
| MATERIAL | STEEL COMP 4640 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6312 ASSN STD SINGLE MATERIAL RESPONSE |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| BODY STYLE | A PLAIN ENDS |
| GROOVE DEPTH | 0.1100 INCHES MINIMUM AND 0.1140 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.37225 INCHES MINIMUM AND 1.37275 INCHES MAXIMUM |
| BODY LENGTH | 4.2760 INCHES MINIMUM AND 4.2860 INCHES MAXIMUM |
| RADIAL GROOVE RADIUS | 0.005 INCHES MINIMUM AND 0.010 INCHES MAXIMUM |
| DISTANCE FROM END TO GROOVE CENTER | 0.0880 INCHES MINIMUM AND 0.0980 INCHES MAXIMUM |
| DISTANCE BETWEEN GROOVE CENTERS | 4.0900 INCHES MINIMUM AND 4.1000 INCHES MAXIMUM |
| BORE STYLE | TAPERED BORE |
| BORE SMALLEST DIAMETER | 0.8900 INCHES NOMINAL |
| LARGEST BORE DIAMETER | 1.0000 INCHES NOMINAL |
| FSC APPLICATION DATA | ACFT ENG R2000 |
