NSN 2810-00-098-2597

Part Details | PISTON PIN PLUG

2810-00-098-2597 A cylindrically-shaped unthreaded item specifically designed to mate with and prevent a piston pin from working out against the side of a cylinder wall. Excludes PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.

Alternate Parts: 234223, 234223, 2810-00-098-2597, 00-098-2597, 2810000982597, 000982597

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
28JAN 01, 196300-098-259722332 ( PLUG, PISTON PIN )

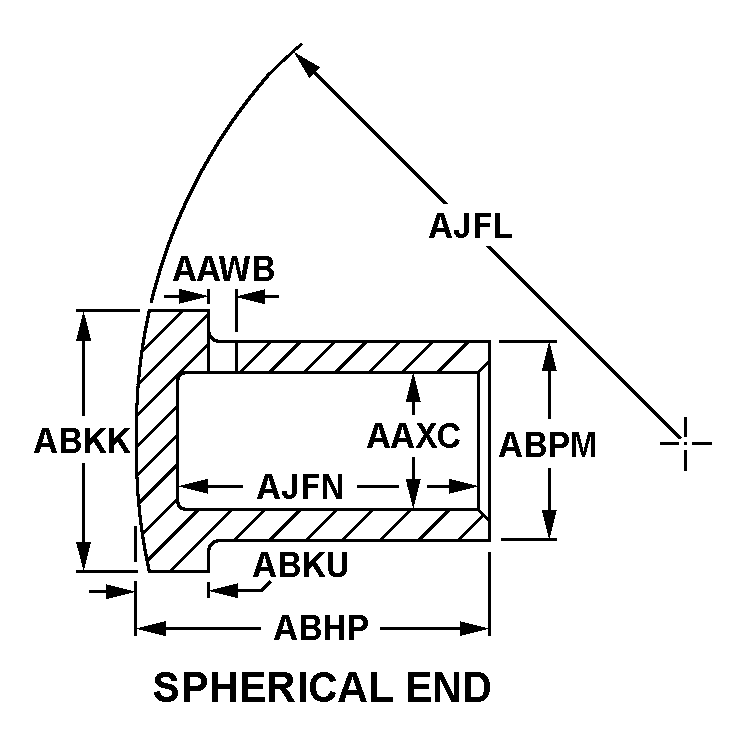

REFERENCE DRAWINGS & PICTURES

SPHERICAL END

PLUG,PISTON PIN | 2810-00-098-2597, 000982597
Cross Reference | NSN 2810-00-098-2597
Part Number Cage Code Manufacturer
23422300198PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP.
23422377445UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS
Technical Data | NSN 2810-00-098-2597
Characteristic Specifications
STYLE DESIGNATOR SPHERICAL END
SHANK UNTHREADED HOLE DIAMETER0.089 INCHES MINIMUM AND 0.099 INCHES MAXIMUM
CONCENTRIC HOLE DIAMETER0.650 INCHES MINIMUM AND 0.670 INCHES MAXIMUM
OVERALL LENGTH1.050 INCHES MINIMUM AND 1.070 INCHES MAXIMUM
FLANGE DIAMETER1.300 INCHES MINIMUM AND 1.320 INCHES MAXIMUM
FLANGE THICKNESS0.214 INCHES MINIMUM AND 0.224 INCHES MAXIMUM
BODY DIAMETER1.127 INCHES MINIMUM AND 1.128 INCHES MAXIMUM
SPHERICAL RADIUS2.478 INCHES MINIMUM AND 2.578 INCHES MAXIMUM
CONCENTRIC HOLE LENGTH0.895 INCHES MINIMUM AND 0.915 INCHES MAXIMUM
FSC APPLICATION DATAACFT ENG R985
