NSN 2805-00-752-1957
Part Details | PISTON CONNECTING ROD
2805-00-752-1957 A device used for connecting a piston to a crankshaft or to a master connecting rod of an internal combustion engine, steam reciprocating engine, reciprocating air compressor, or the like. The rod may be connected directly to the piston, or it may transmit the motion through a crosshead.
Alternate Parts: 1283A3, 913356, 7521957, 2805-00-752-1957, 00-752-1957, 2805007521957, 007521957
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1960 | 00-752-1957 | 60266 ( CONNECTING ROD, PISTON ) |
REFERENCE DRAWINGS & PICTURES
I-SECTION TYPE
AUTOMOTIVE STANDARD SPLIT BEARING 2 BOLT

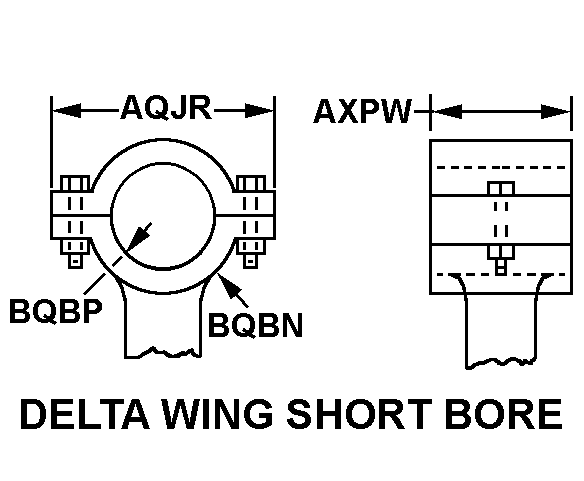

DELTA WING SHORT BORE
Cross Reference | NSN 2805-00-752-1957
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1283A3 | 56442 | DIAMOND REO TRUCK CO |
| 913356 | 58275 | SASCO INC CANADIAN DIV |
| 7521957 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2805-00-752-1957
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FABRICATION METHOD | J ANY ACCEPTABLE |
| STRENGTH RATING | 96000.0 POUNDS PER SQUARE INCH MINIMUM TENSILE |
| METALLIC HARDNESS RATING | 229.0 MINIMUM BRINELL TUNGSTEN CARBIDE AND 269.0 MAXIMUM BRINELL TUNGSTEN CARBIDE |
| CENTER TO CENTER EFFECTIVE LENGTH | 7.248 INCHES MINIMUM AND 7.252 INCHES MAXIMUM |
| BODY WIDTH AT PISTON CONNECTING END | 1.015 INCHES NOMINAL |
| BODY WIDTH AT SHAFT CONNECTING END | 1.205 INCHES NOMINAL |
| BODY THICKNESS AT PISTON CONNECTING END | 0.770 INCHES NOMINAL |
| BODY THICKNESS AT SHAFT CONNECTING END | 0.805 INCHES NOMINAL |
| PISTON END CONNECTION STYLE | DELTA WING SHORT BORE |
| END WIDTH | 3.875 INCHES NOMINAL |
| END THICKNESS | 1.403 INCHES MINIMUM AND 1.409 INCHES MAXIMUM |
| EDGE RADIUS | 2.876 INCHES NOMINAL |
| END HOLE INSIDE DIAMETER | 2.333 INCHES NOMINAL |
| PISTON CONNECTING END BEARING | INCLUDED |
| BEARING REPLACEABILITY | REPLACEABLE |
| PISTON CONNECTING END LUBRICATION DRILL FEATURE | INCLUDED |
| PISTON CONNECTING END LUBRICATION METHOD | SPLASH |
| SHAFT CONNECTING END STYLE | AUTOMOTIVE STANDARD SPLIT BEARING 2 BOLT |
| SHAFT CONNECTING END HOLE INSIDE DIAMETER | 2.325 INCHES NOMINAL |
| SHAFT CONNECTING END EDGE RADIUS | 1.630 INCHES NOMINAL |
| SHAFT CONNECTING END WIDTH | 3.835 INCHES NOMINAL |
| SHAFT CONNECTING END THICKNESS | 1.612 INCHES MINIMUM AND 1.614 INCHES MAXIMUM |
| SHAFT CONNECTING END BEARING | NOT INCLUDED |
| SHAFT CONNECTING END LUBRICATION DRILL FEATURE | INCLUDED |
| SHAFT CONNECTING END LUBRICATION METHOD | FULL FORCED-FEED |
| CROSS-SECTIONAL SHAPE STYLE | I-SECTION TYPE |
